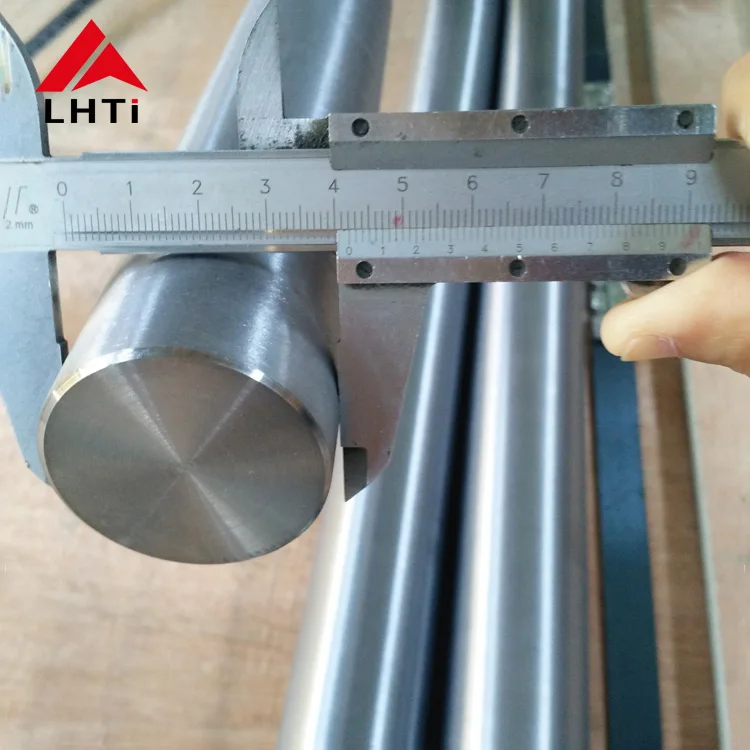

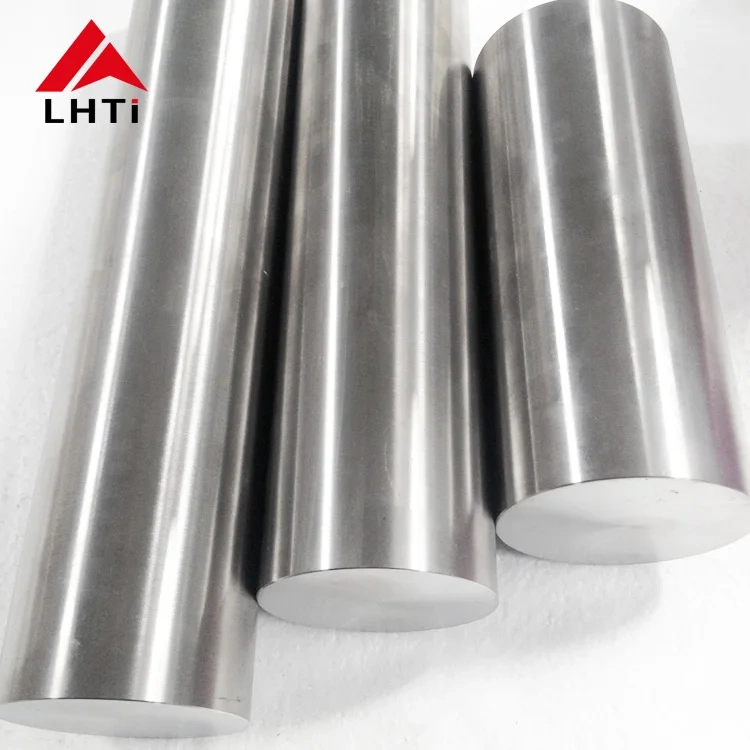

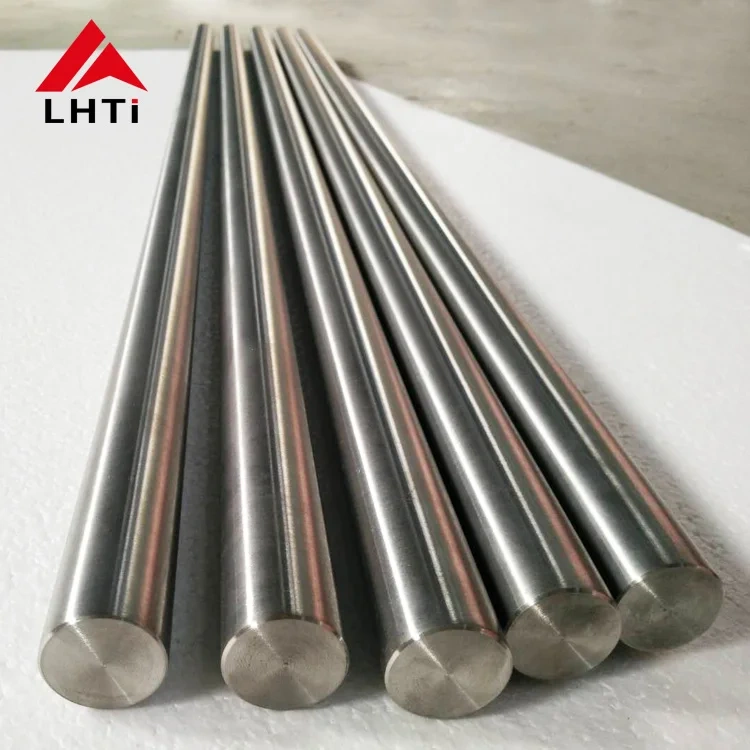

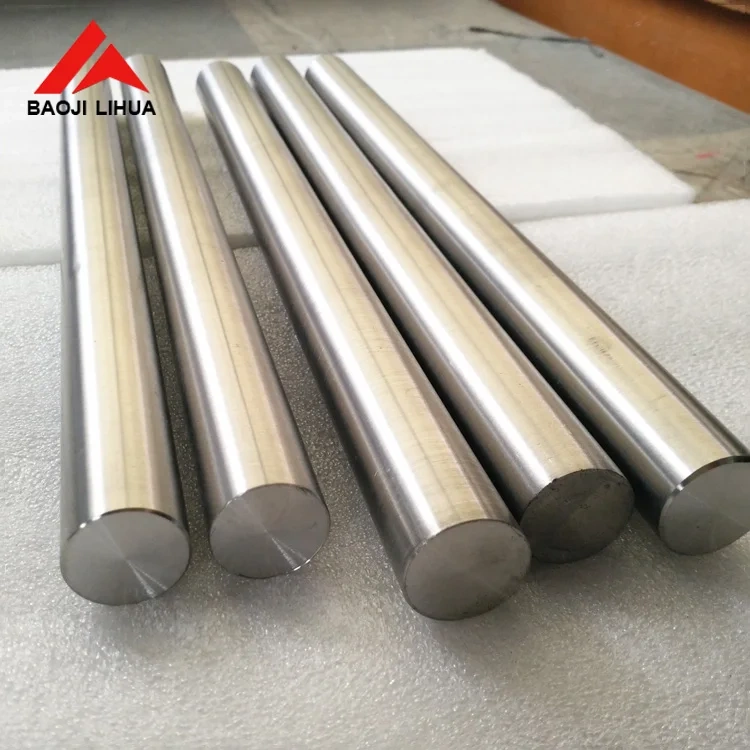

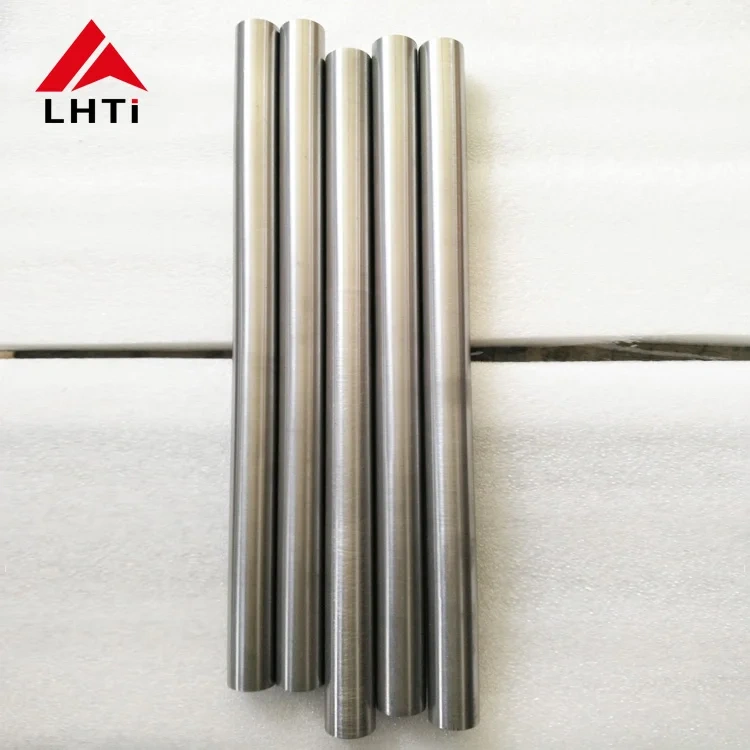

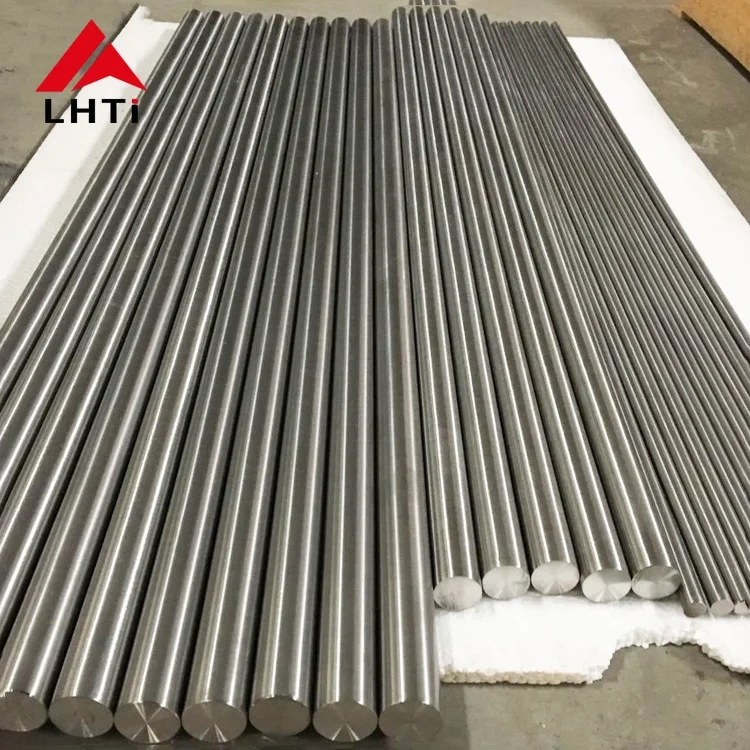

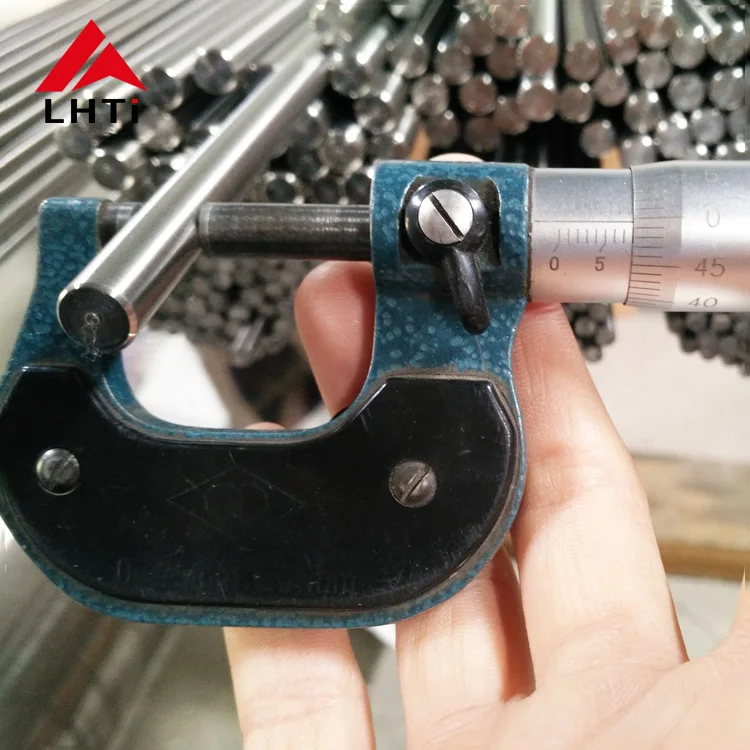

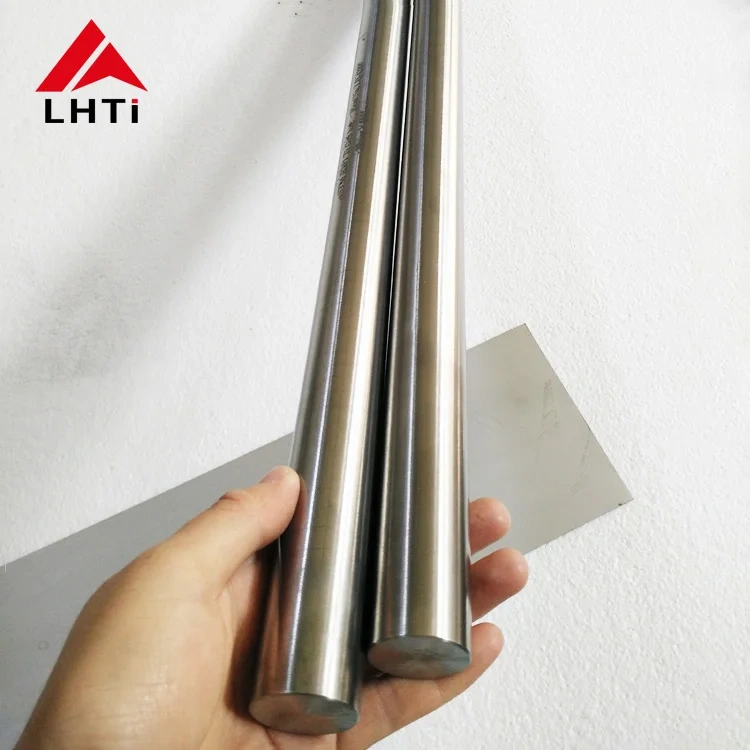

Gr5 Ti bar price of alloy titanium dia 210mm length 90mm
Item Name | New Arrival ASTM B348 Grade2 Dia 5 mm Titanium Bar Rod In Stock |
Standard | ASTM B348,ASTM F67,ASTM F136, AMS 4928 |
Material | Gr1,Gr2,Gr5 |
Diameter | 3~350mm |
Length | 500~6000mm or according to customers' request |
Product Status | Cold rolled(Y)~Hot rolled(R)~Annealed (M)~Solid Status |
Shape | Round bar, square bar , hex bar... |
Feature | 1.Polished surface without any defects free from cracks no pittings 2.Two ends flating making sure length torlerance and good looking |
Certificate | ISO9001:2008, TUV, material test certificate acc EN10204.3.1 |
Physical Properties | |||||
| Tensile Strength(min) | Yeild Strength(min) | Elongation(%) | |||
| ksi | MPa | ksi | MPa | ||
| Grade 1 | 35 | 240 | 20 | 138 | 24 |
| Grade2 | 50 | 345 | 40 | 275 | 20 |
| Grade 3 | 65 | 450 | 55 | 380 | 18 |
| Grade 4 | 80 | 550 | 70 | 483 | 15 |
| Grade 5 | 130 | 895 | 120 | 828 | 10 |
| Grade 7 | 50 | 345 | 40 | 275 | 20 |
| Grade 9 | 90 | 620 | 70 | 483 | 15 |
| Grade 12 | 70 | 483 | 50 | 345 | 18 |
| Grade 23 | 120 | 828 | 110 | 759 | 10 |
| Chemical composition | |||||||||||
N | C | H | Fe | O | Al | V | Pd | Mo | Ni | Ti | |
Grade 1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | Bal |
Grade 2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | Bal |
Grade 3 | 0.05 | 0.08 | 0.015 | 0.30 | 0.35 | / | / | / | / | / | Bal |
Grade 4 | 0.05 | 0.08 | 0.015 | 0.50 | 0.40 | / | / | / | / | / | / |
Grade 5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5-6.75 | 3.5-4.5 | / | / | / | Bal |
Grade 7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12-0.25 | / | / | Bal |
Grade 9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5-3.5 | 2.0-3.0 | / | / | / | Bal |
Grade 12 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | / | / | / | 0.2-0.4 | 0.6-0.9 | Bal |
| Grade 23 | 0.03 | 0.08 | 0.0120 | 0.25 | 0.13 | 5.5-6.50 | 3.5-4.5 | / | / | / | Bal |
