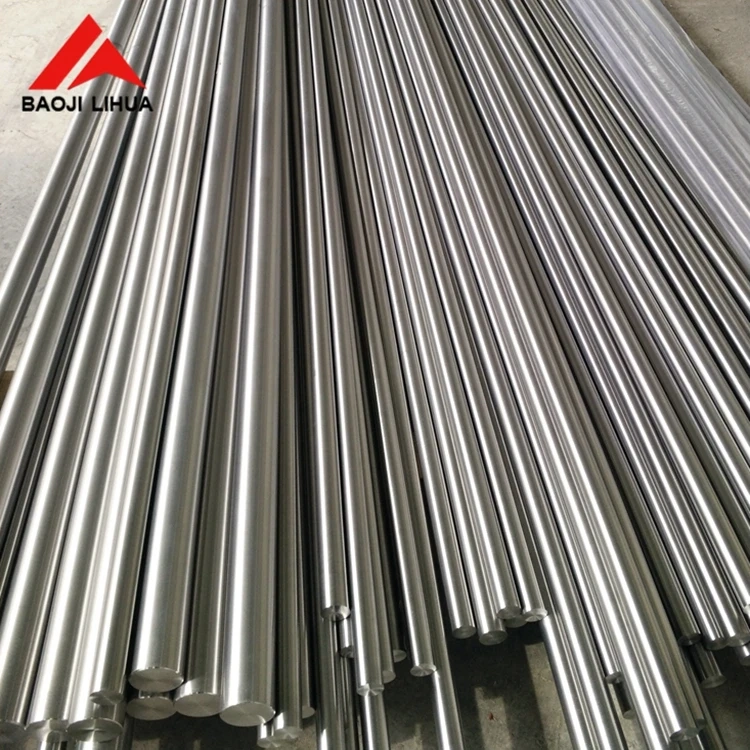

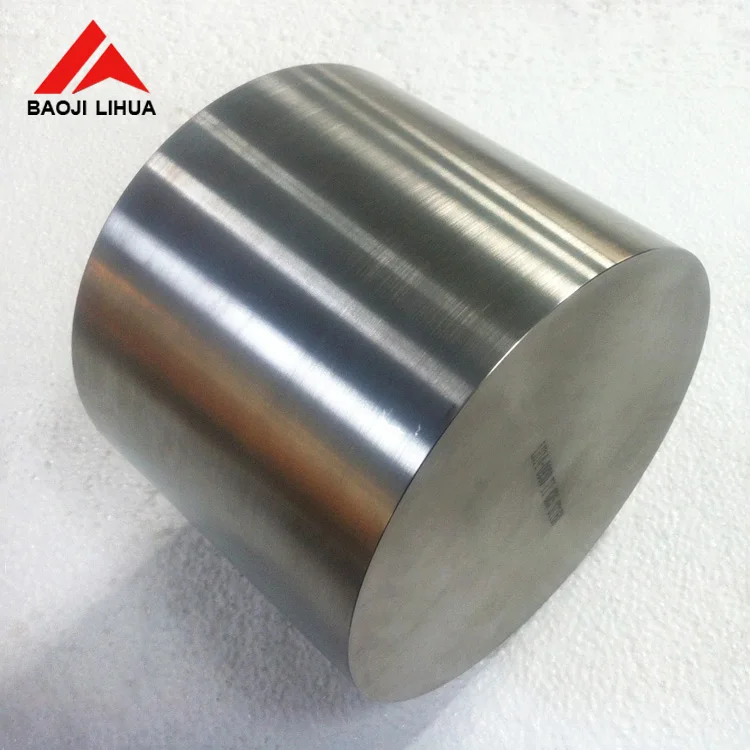

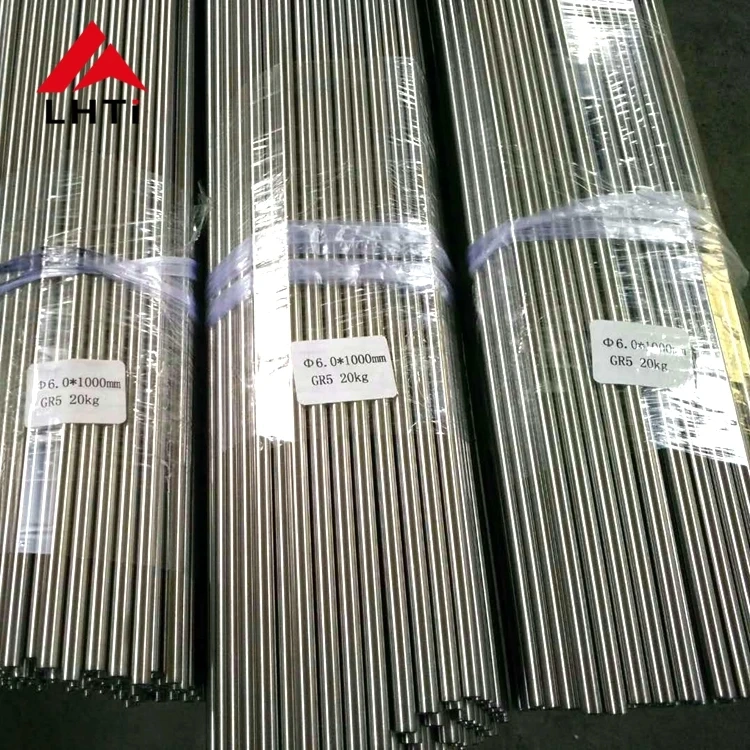

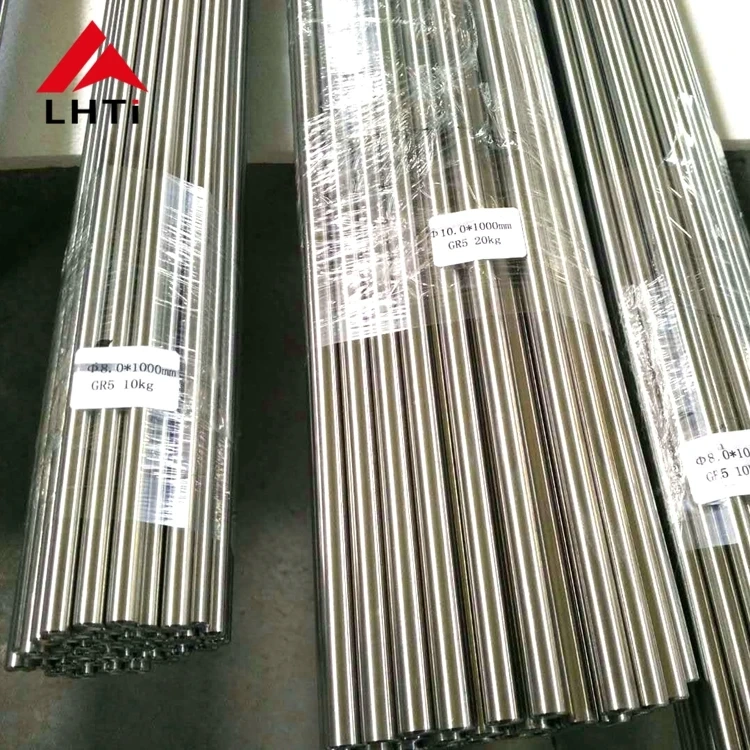

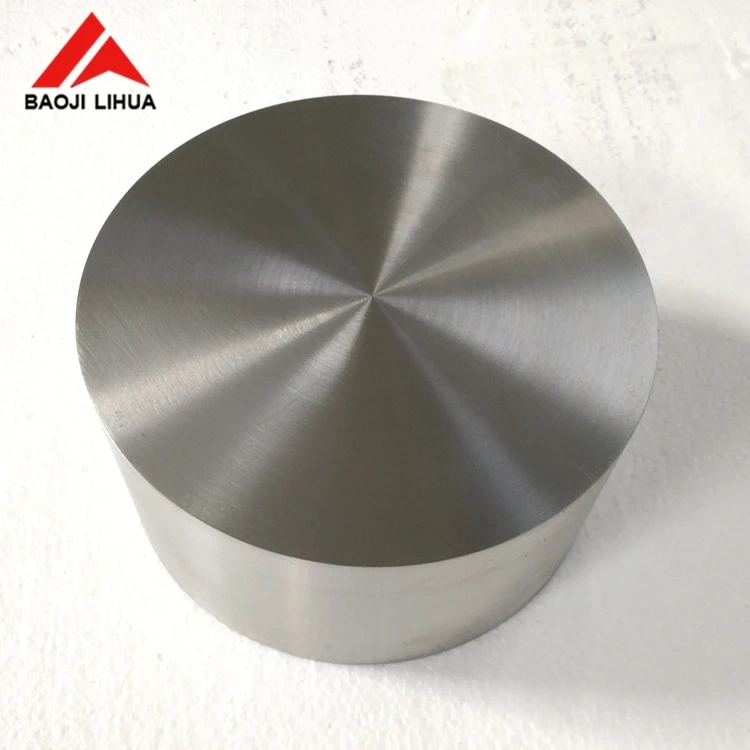

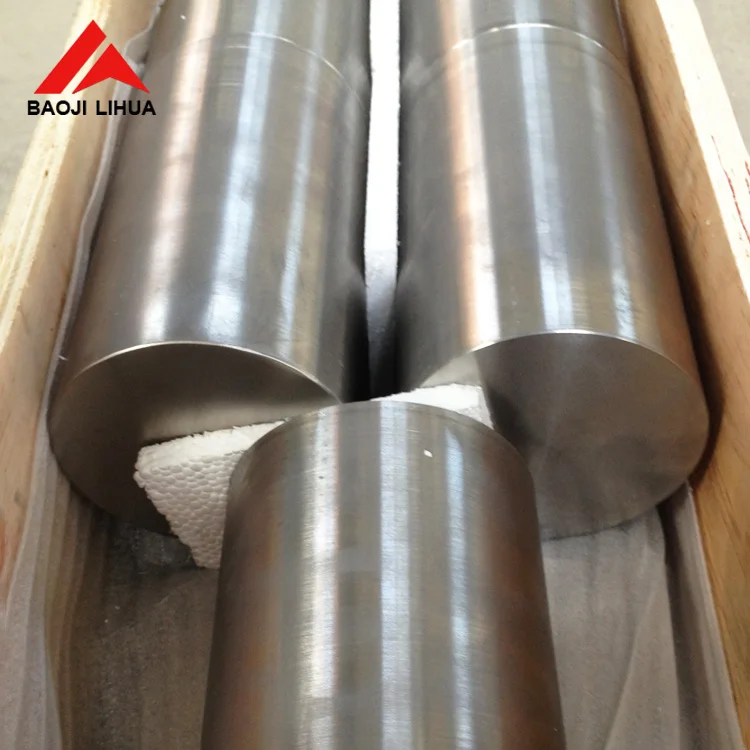

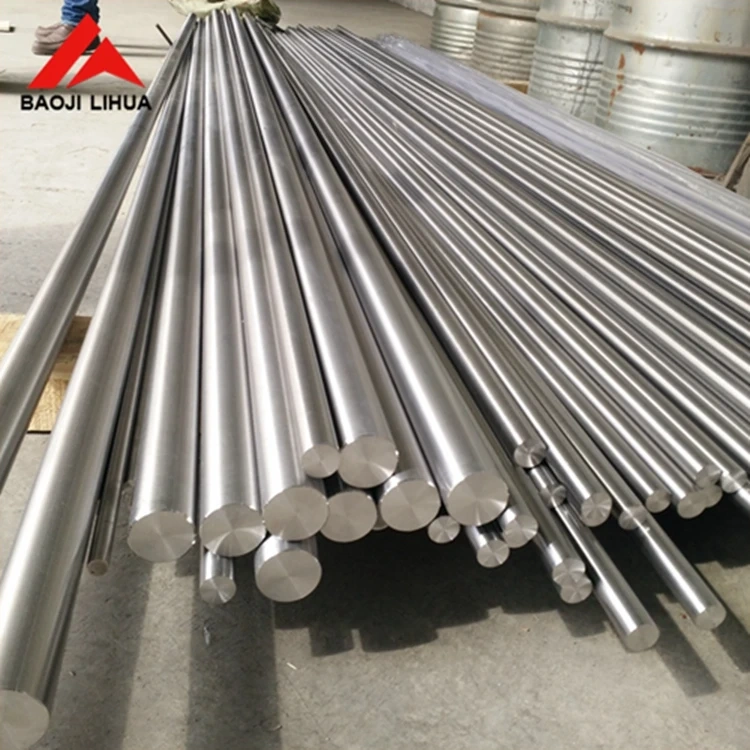

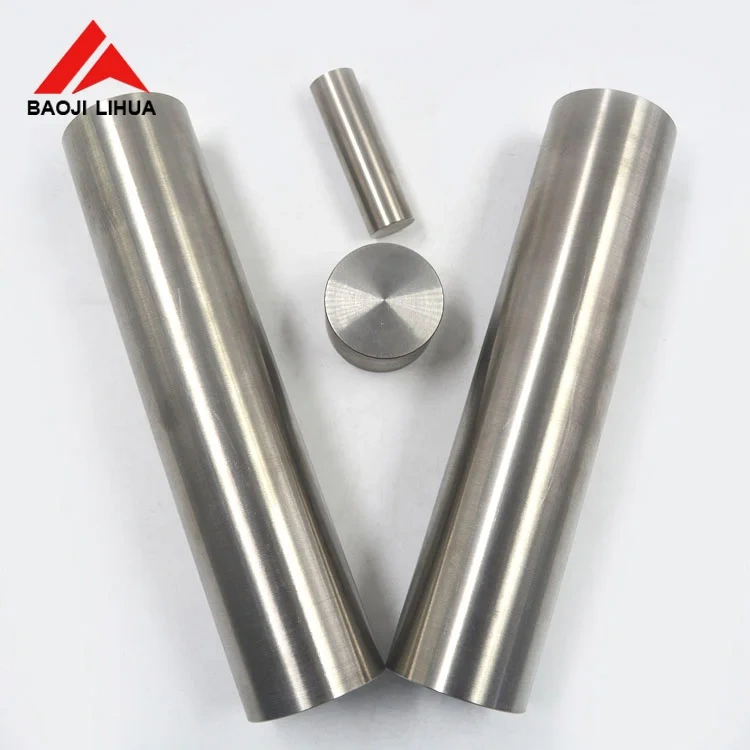

Pure titanium round bars tc4 grade 5 titanium bar for sale
Item name | Titaium bar/Titanium rod |
Standard | ASTM B348,ASTM F67,ASTM F136, AMS 4928 |
Material | Gr1,Gr2,Gr3,Gr4,Gr5,Gr7,Gr9,Gr12,Gr23 |
Diameter | 3~350mm |
Length | 500~6000mm or according to customers' request |
Product Status | Cold rolled(Y)~Hot rolled(R)~Annealed (M)~Solid Status |
Shape | Round bar, square bar , hex bar... |
Feature | 1.Polished surface without any defects free from cracks no pittings 2.Two ends flating making sure length torlerance and good looking |
1. Available Size and standards.
| Grade | Technology | Standard | Specification(mm) |
Gr1.Gr2.Gr4.Gr5.Gr7. Gr9.Gr12. Gr5 Eli | Forging | ASTM B348 F136 F67 | Φ(60~350)Xâ¤4000 |
| Rolling | Φ(6~100)Xâ¤6000 |
2.Tolerance of diameter
| Diameter(mm) | h7 | h8 | h9 | h10 | h11 | h12 | |
| Tolerance precision (um) | |||||||
| 3Max | 10 | 14 | 25 | 40 | 60 | 100 | |
| 3~6 | 12 | 18 | 30 | 48 | 75 | 120 | |
| 6~10 | 15 | 22 | 36 | 58 | 90 | 150 | |
| 10~18 | 18 | 27 | 43 | 70 | 110 | 180 | |
| 18~30 | 21 | 33 | 52 | 84 | 130 | 210 | |
| 30~50 | 25 | 39 | 62 | 100 | 160 | 250 | |
| 50~80m | 30 | 46 | 74 | 120 | 190 | 300 | |
| 80~120 | 35 | 54 | 87 | 140 | 220 | 350 | |
| 120~180 | 40 | 63 | 100 | 160 | 250 | 400 | |
| "h"stands for a tolerance range(-x,+0),on the contrary,"H"stands for a tolerance(-0,+X) | |||||||
Tensile requirements
| grade | Tensile strength(min) | Yeild strength(min) | Elongation(%) | ||
| ksi | MPa | ksi | MPa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 4 | 80 | 550 | 70 | 483 | 15 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 9 | 90 | 620 | 70 | 483 | 15 |
| 23 | 120 | 828 | 110 | 759 | 10 |

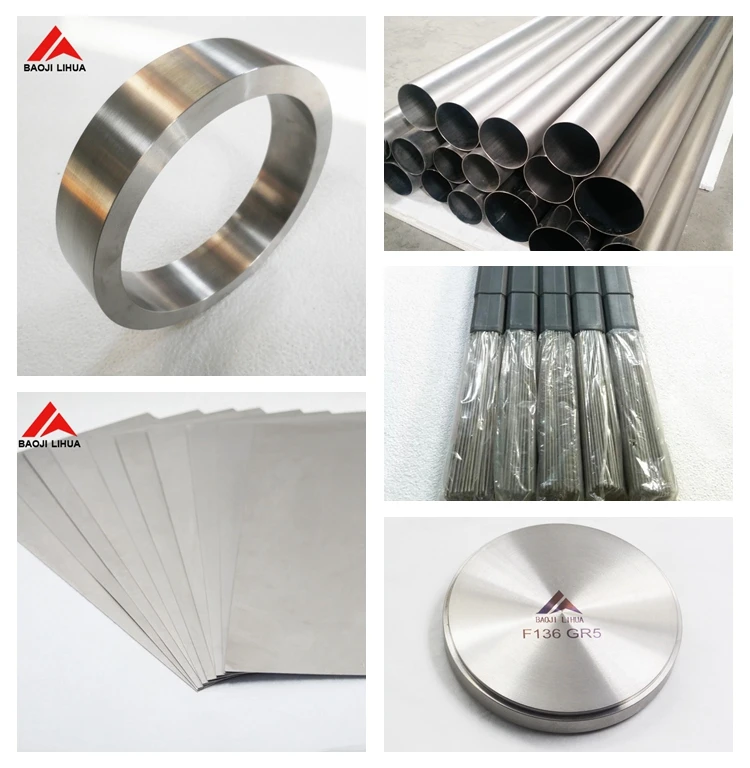

Titanium ring, titanium tube/pipe, titanium plate/sheet,titanium wire,titanium disc
FAQ |
Q1.--How can you ensure the product quality? --All products are manufactured according to ASTM standard (Bolts are according to ASME standard and DIN standard),and we make 100% inspection before shipment,also we can provide the MTC Material Test Certification. |
Q2.--Can you print our LOGO on the products? --Sure, and we welcome the customerized products. |
Q3.--Can we get the free sample? --Sure. |
Q4.--What about the payment terms? --T/T, L/C,Paypal,Western Union,Escrew and MoneyGram etc are all accepted. |
Q5.--Do you have your website? --Yes, Please click here. http://www.lihua-group.com (Independent website) |
