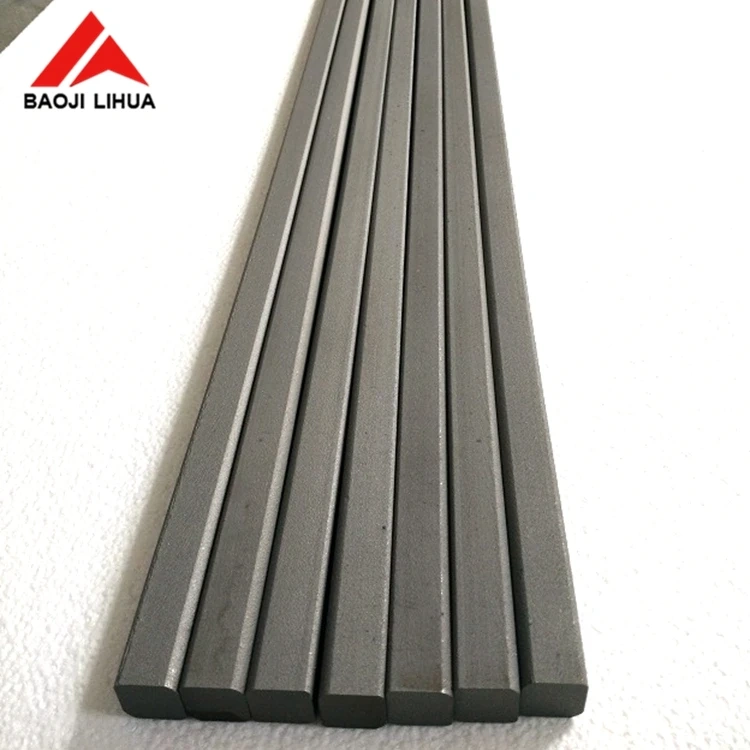

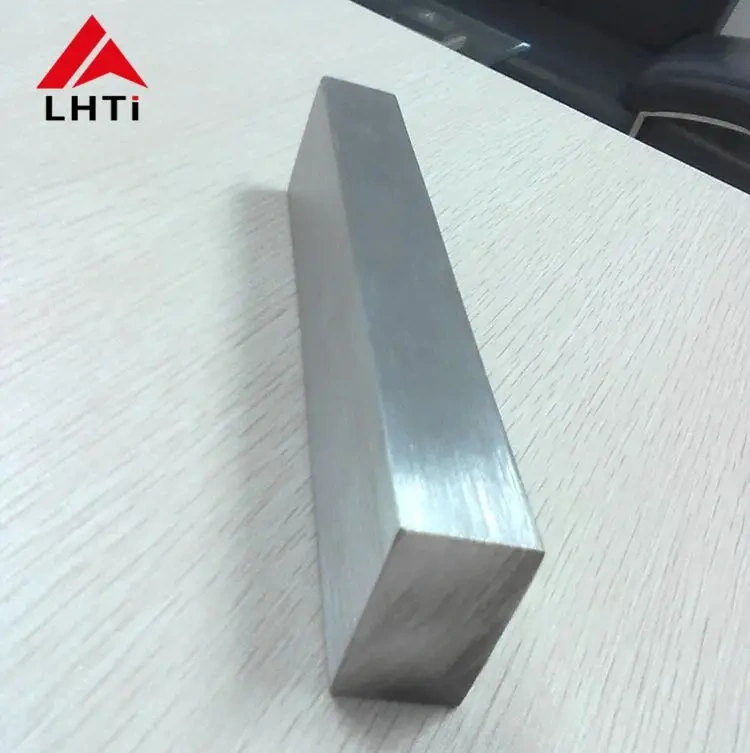

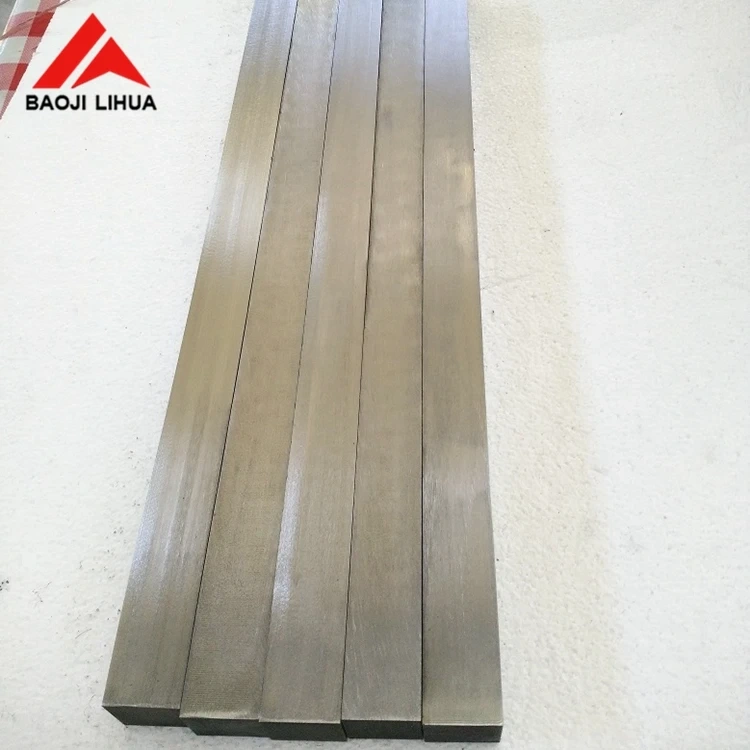

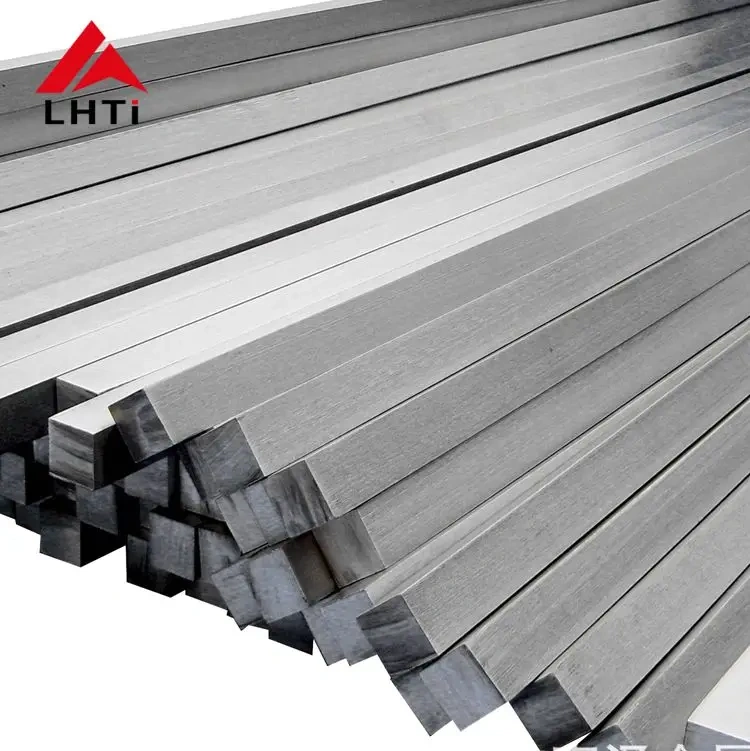

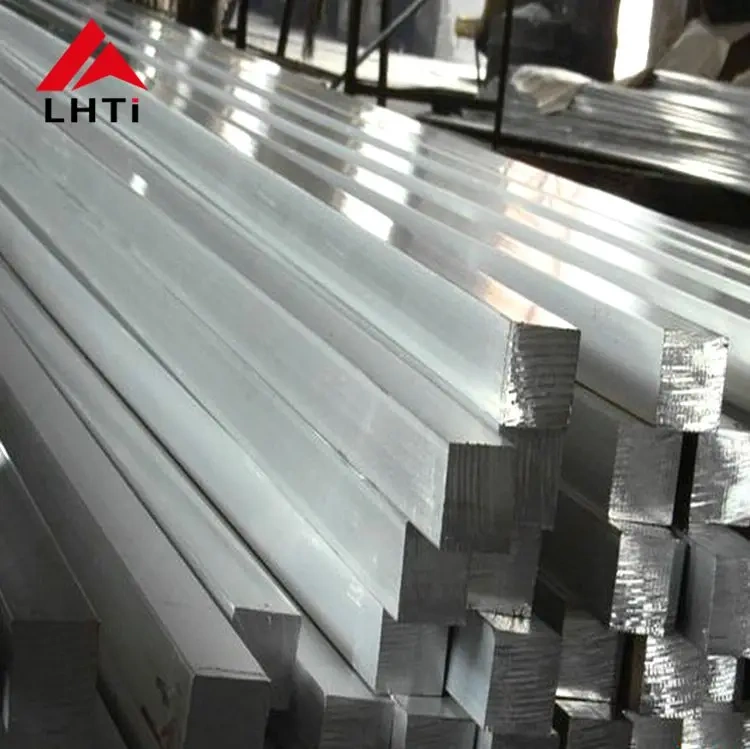

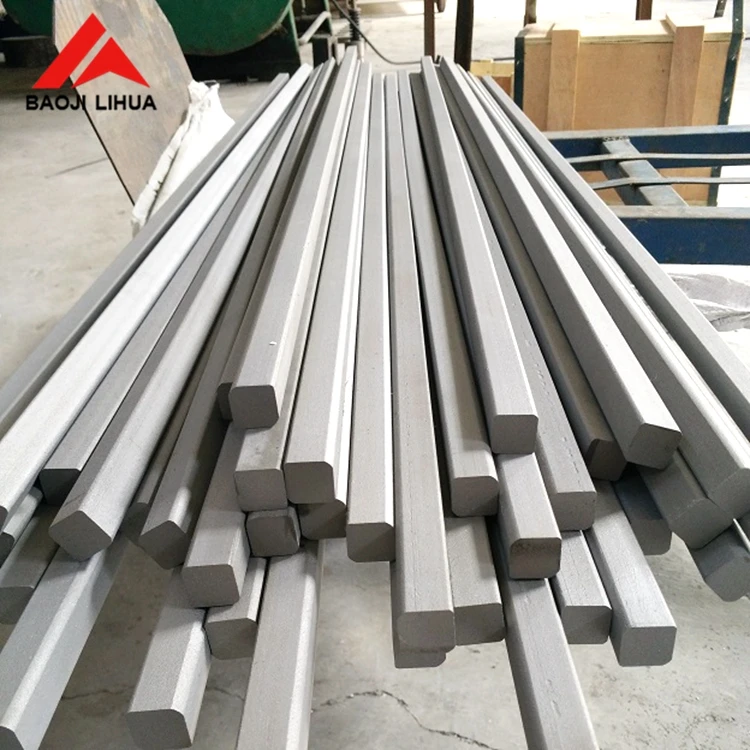

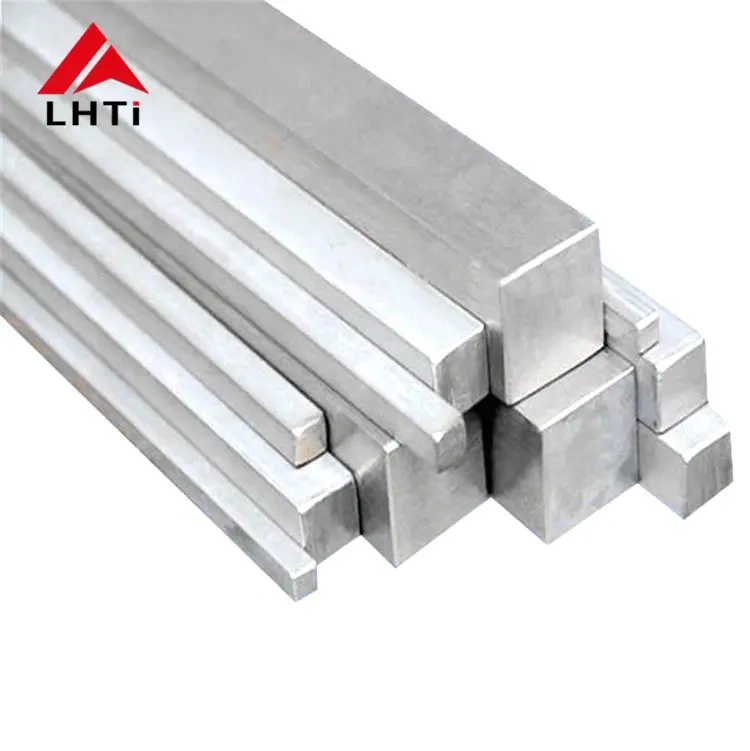

Ti-6Al-4v Titanium square bar ,gr5 titanium price per bar
Titanium Features:
1. Superior Corrosion Resistance (Anti-Corrosion)
2.High Strength : Twice of the iron, six times of the aluminum
3.High purity : 90% of titanium
4.Biocompatible (No harm to human body)
5.Low Thermal Expansion
6.Low Thermal Conduction
7.Diverse Colors - Enable to realize colors on the surface
We can produce various grades and sizes titanium bars according to the requests of customers.
1. Titanium bar
Item name | Titanium Bar |
Standard | ASTM B348, |
Material | Gr5 |
Diameter | 0.12~11.81' (3~300mm) |
Length | 39.37~118.11' (1000~3000mm) or Saw Cutting to required length |
Certificate | ISO 9001, EN10204 3.1 Certificate |
Packaging | Steel pallet + wooden case (above 200 kg/case); |
Payment | T/T in advance or Irrevocable L/C at sight |
MOQ | 10Kg |
Leadtime | Within 15 days based on MOQ after deposit |
2. Chemical requirements
| N | C | H | Fe | O | Al | V | Pa | Mo | Ni | Ti |
Gr 1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
Gr 2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
Gr 3 | 0.05 | 0.08 | 0.015 | 0.30 | 0.35 | / | / | / | / | / | bal |
Gr 4 | 0.05 | 0.08 | 0.015 | 0.50 | 0.40 | / | / | / | / | / | bal |
Gr 5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
Gr 7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
Gr 9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | bal |
Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
3. Tensile requirements
Grade | Tensile strength(min) | Yeild strength(min) | Elongation(%) | ||
ksi | MPa | ksi | MPa | ||
1 | 35 | 240 | 20 | 138 | 24 |
2 | 50 | 345 | 40 | 275 | 20 |
3 | 65 | 450 | 55 | 380 | 18 |
4 | 80 | 550 | 70 | 483 | 15 |
5 | 130 | 895 | 120 | 828 | 10 |
7 | 50 | 345 | 40 | 275 | 20 |
9 | 90 | 620 | 70 | 438 | 15 |
12 | 70 | 438 | 50 | 345 | 18 |
4.Packaging Details
1). plywood case, free of fumigating;
2). Steel pallet + wooden case (above 200 kg/case);
3). Available upon the client's request, provide professional export-service
4). detail delivery date should be decided according to production season and order quantity.
Ensuring our customers get the satisfying products,strict test is necessary:
1.Visual inspection to check surface quality,ensuring without flaw,black dot and any other defects.
2.Ultrasonic Flaw Detection making sure there are no defects inside.
3.Chemical Composition Detection making sure all chemical component can satisfy customer's demands.
4. Mechanical Features testing making sure all titanium bars have satisfying mechanical features before delivery.
