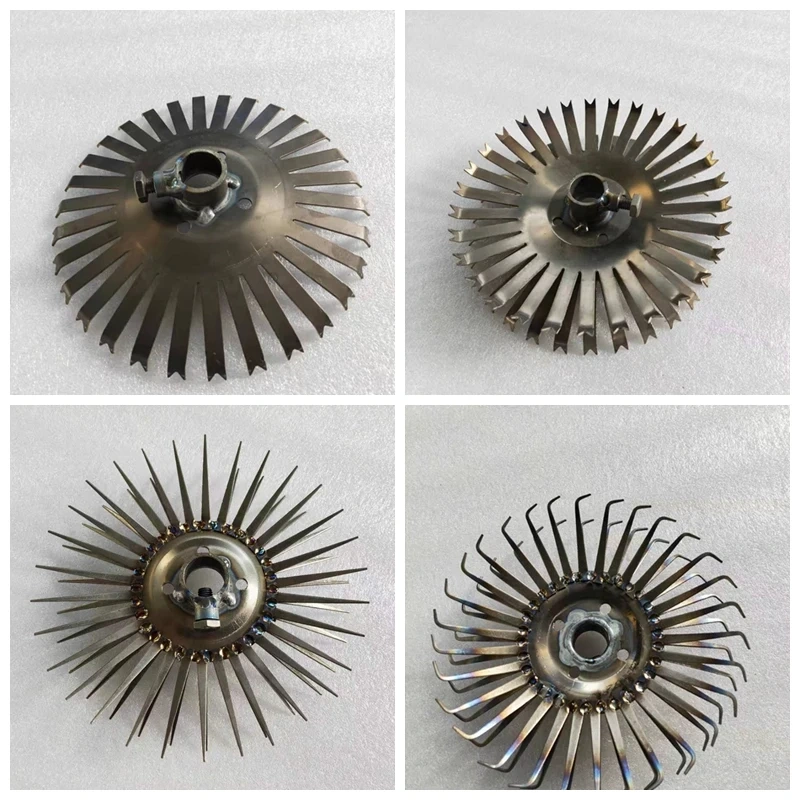

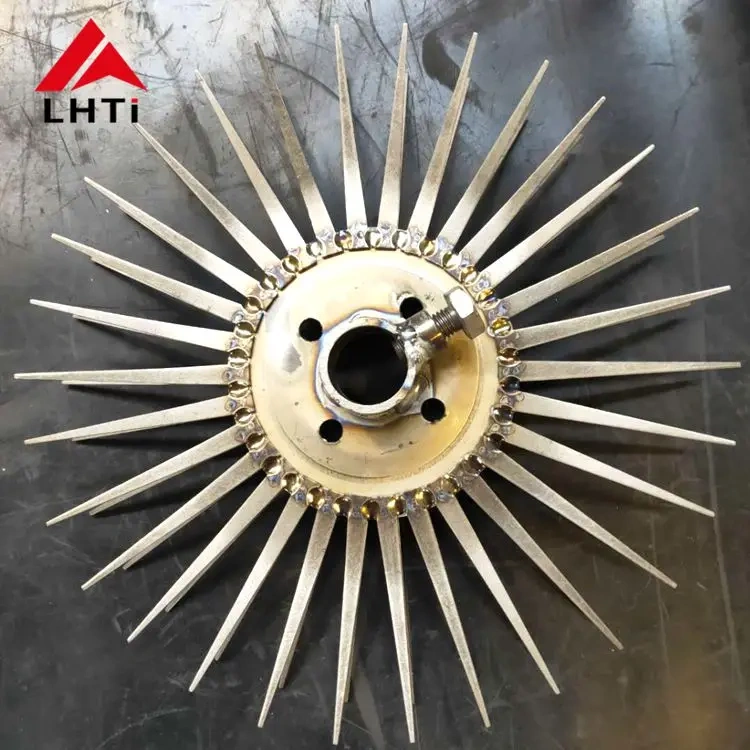

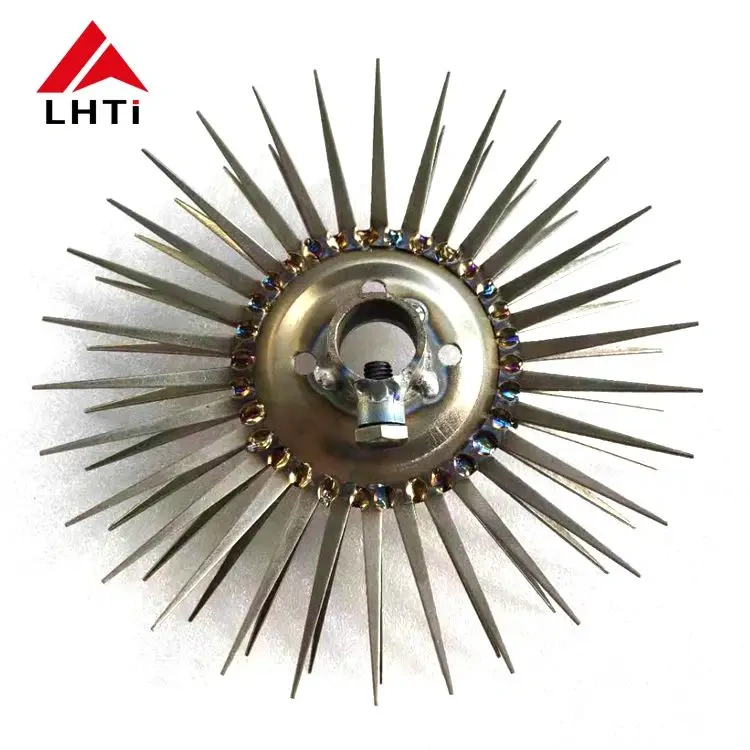

Gr2 Titanium 30 split fingers disk rack Dia220mm Thick1.5mm for Anodizing
Material: Titanium Gr1, Gr2, Gr3, Gr4 --- pure commercial grade titanium for industry
â¢
Plating Jigs or Racks are useful where the output is large and even for distribution of electric current. Other advantage uses are · a good deal of saving in labor, time and ensures speedy loading · increasing productivity · reducing production costs.
â¢

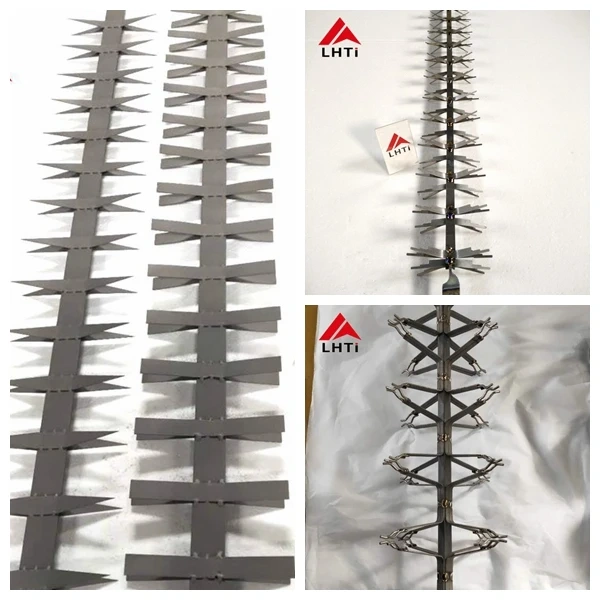

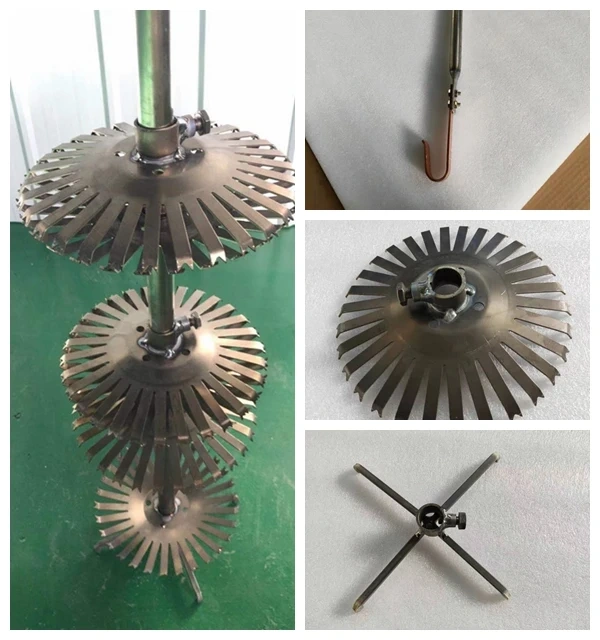

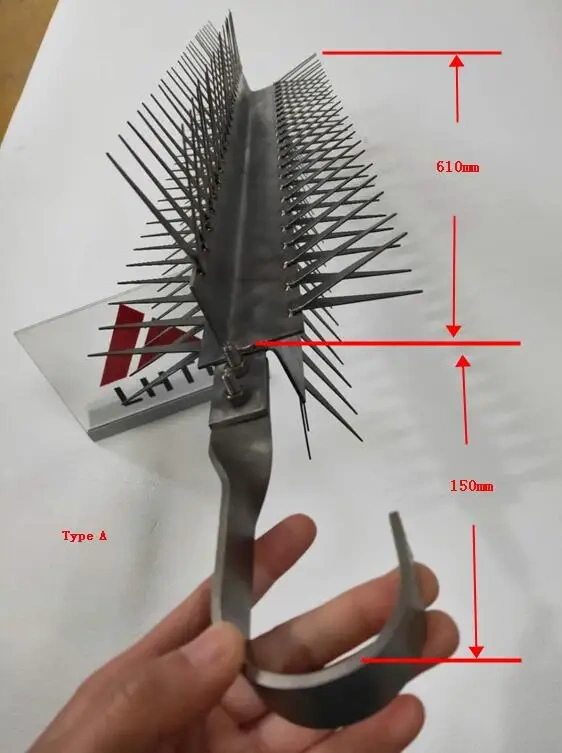

Jigs are to be used for Electroplating, Electro polishing, Painting and Anodizing. Jigs made of Titanium are to be used for anodizing/ electro polishing. Jigs can be designed, fabricated and insulated according to customersâ requirements.
Material | Titanium Gr1 Gr2 |
Technology | Sand Blasting, Acid Washing |
Dimension & Shape | Different dimension and shape is available,or according to customer's drawing |
Parameter | Current densityâ¤2000A/M2 Temperature<65°C PH 0.1~14 Max content of Fluoride ion is 200PPM |
Features | Superior electric catalytic property Strong anti-corrosion property High current efficiency property Keep the operating voltage stably Decrease the wastage of additive Keep the plating solution stable Long lifetime Different complex geometry design |
Applications | Ã Precious metal plating(Ag, Au, Rh, Pd) Ã Hard chrome plating(Cr6+) Ã Base metal plating(Cu, Zn, Ni) Ã Precious metal recovery, etc. |
Remarks | Titanium anode also called MMO anode,DSA & Insoluble anode Cathode also be provided |
Packing | Plywood case or carton, or according to customerâs demand |
FAQ |
Q1.--How can you ensure the product quality? --All products are manufactured according to ASTM standard (Bolts are according to ASME standard and DIN standard),and we make 100% inspection before shipment,also we can provide the MTC Material Test Certification. |
Q2.--Can you print our LOGO on the products? --Sure, and we welcome the customerized products. |
Q3.--Can we get the free sample? --Sure. |
Q4.--What about the payment terms? --T/T, L/C,Paypal,Western Union,Escrew and MoneyGram etc are all accepted. |
Q5.--Do you have your website? --Yes, Please click here. http://www.lihua-group.com (Independent website) |
Q6.--What is the necessary information for a inquiry? --Product name, specification, material grade and quantity. |
