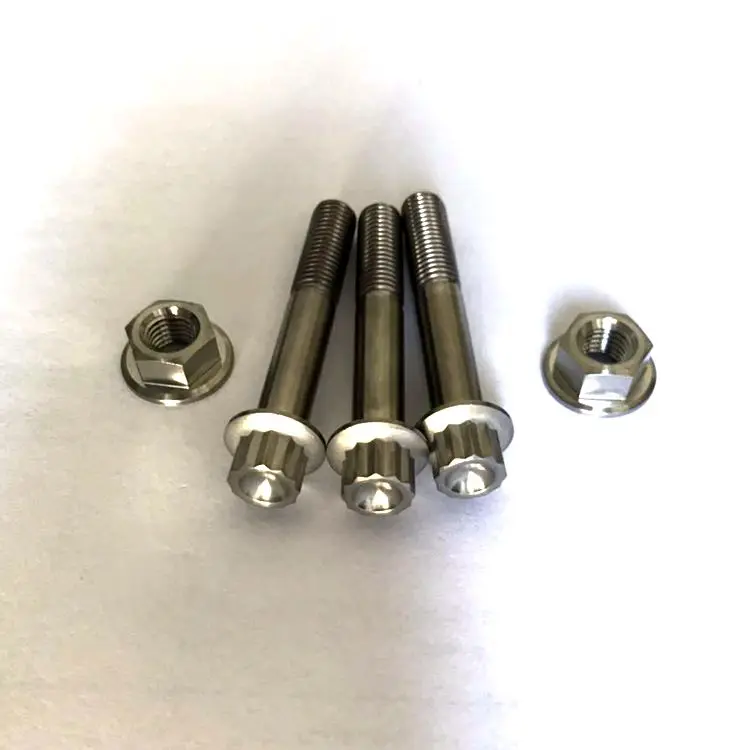

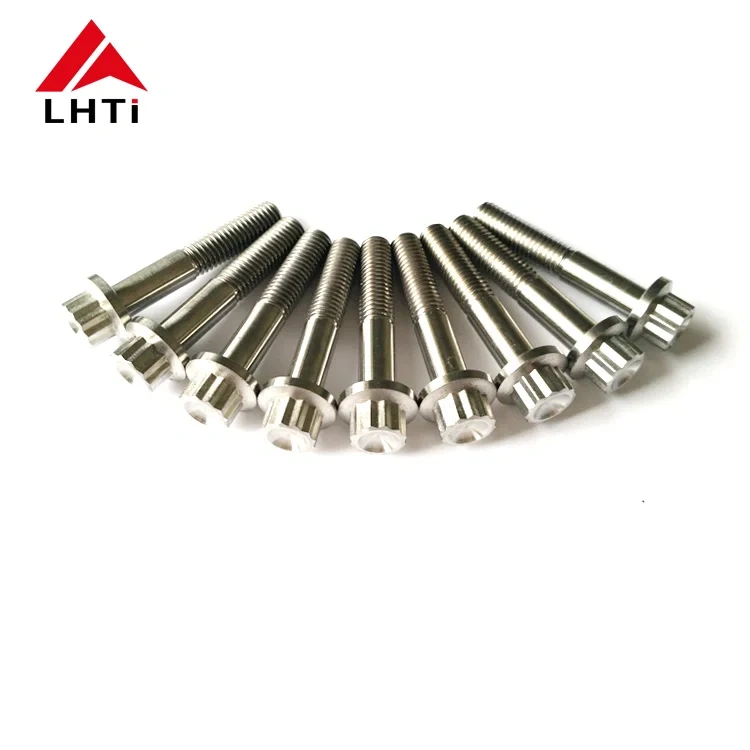

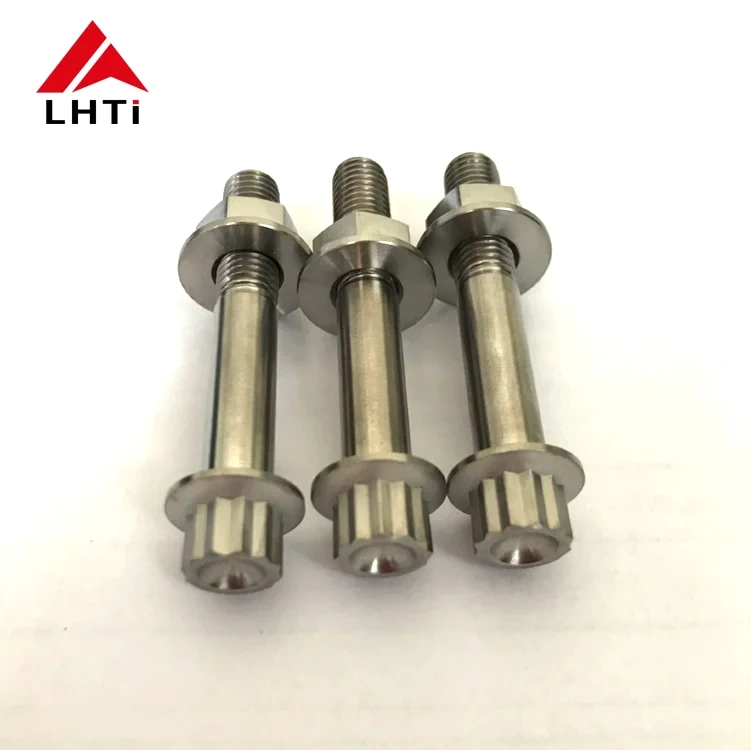

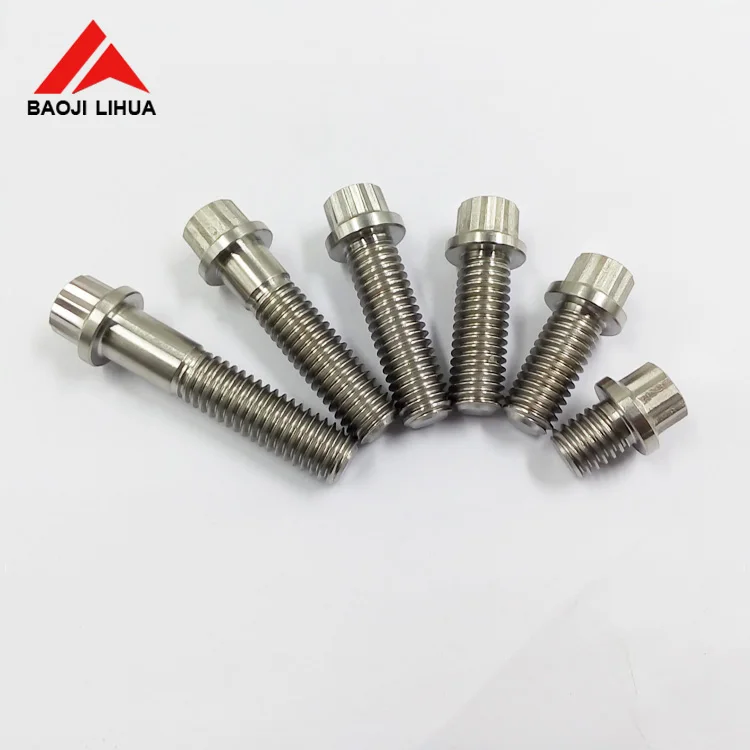

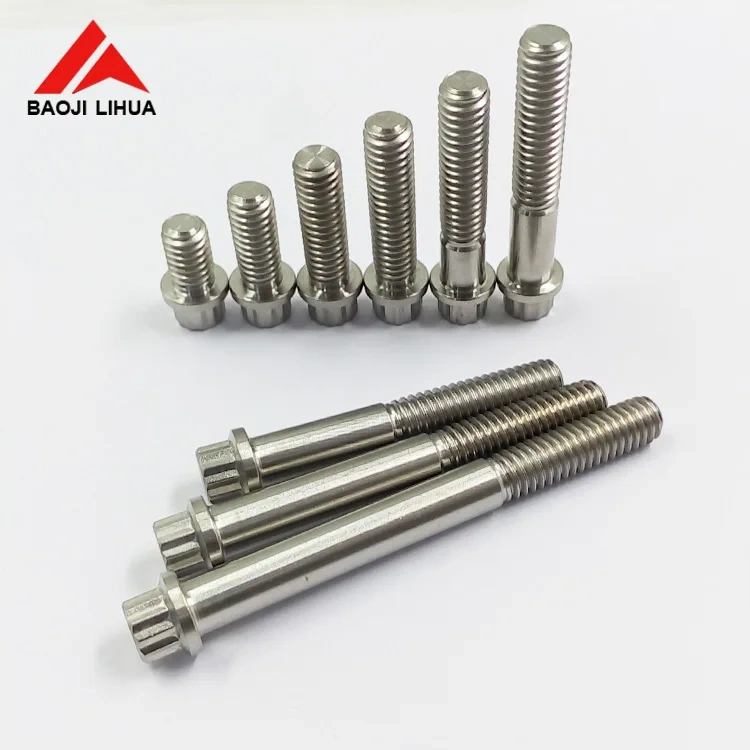

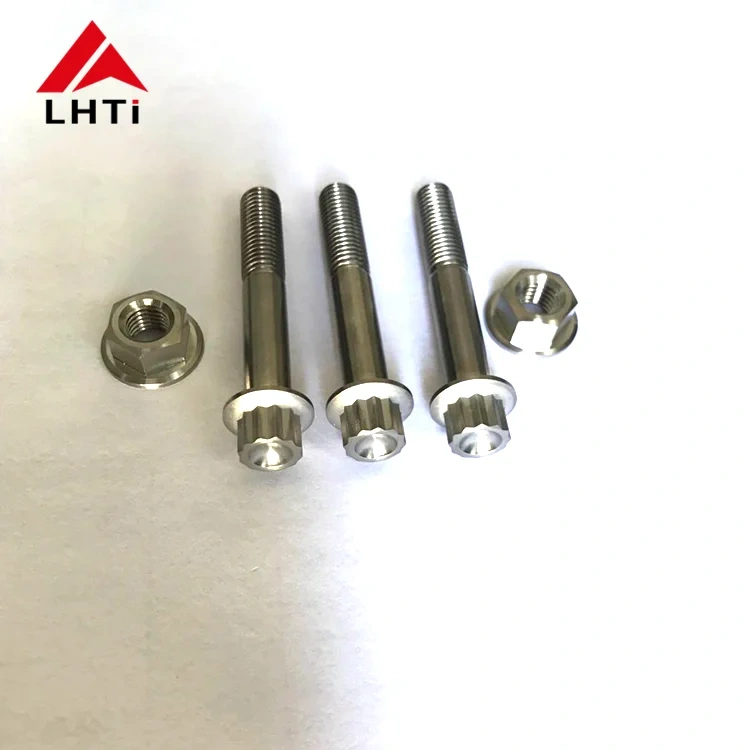

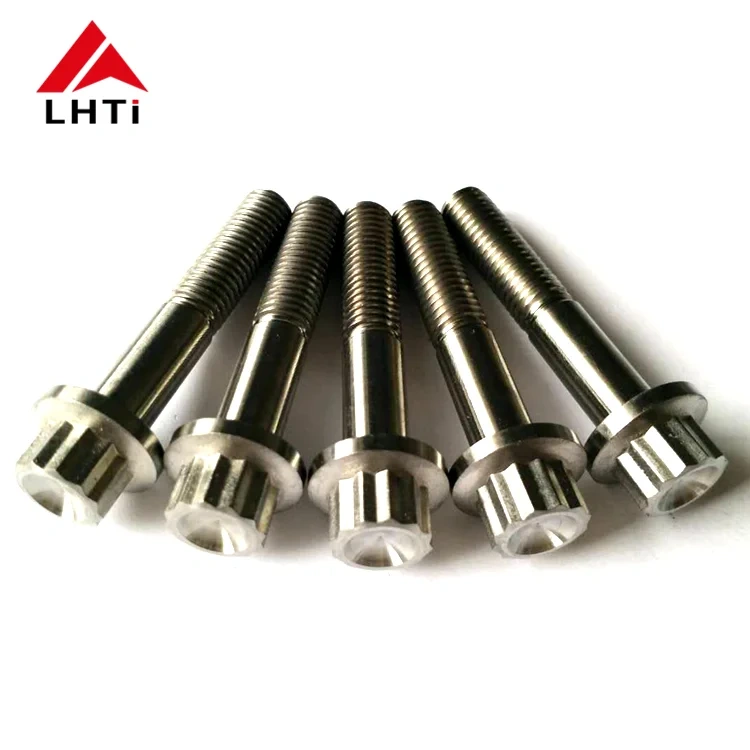

TI6Al4v GR5 M7 Titanium 12 point Flange Head Split Rim Bolt & nut for BBS rim
| Gr5(Ti6Al4V) | ||||
| Chemical compositions(weight%,<=) | ||||
| Ti | Al | V | Fe | C |
| Reminder | 5.5-6.75 | 3.5-4.5 | 0.30 | 0.08 |
| N | H | O | Other(total) | |
| 0.05 | 0.015 | 0.2 | 0.4 | |
Physical properties(>=) | ||||
Σb Tensile Strength (Mpa) | Ïr0.2 Yield Strength (Mpa) | δL0+50mm Elongation (%) | Ï Reduction of area (%) | |
| 895 | 825 | 10 | 25 | |
Mechanical info about our Ti alloy bolts | |
| Thread | Rolled thread for better fatigue resistance and avoid galling, Instead of cut thread |
| Tensile strength | Heat treated to 950Mpa~1000Mpa |
| Yield strength | 870Mpa~925Mpa (126,000psi~134,000psi) |
| Hardness | 30 HRC-40HRC |
| Shear strength | 500Mpa~550Mpa |
| Elongation | 14%~18% |
| Working temp | Up to 500°c |
FAQ |
Q1.--How can you ensure the product quality? --All products are manufactured according to ASTM standard (Bolts are according to ASME standard and DIN standard),and we make 100% inspection before shipment,also we can provide the MTC Material Test Certification. |
Q2.--Can you print our LOGO on the products? --Sure, and we welcome the customerized products. |
Q3.--Can we get the free sample? --Sure. |
Q4.--What about the payment terms? --T/T, L/C,Paypal,Western Union,Escrew and MoneyGram etc are all accepted. |
Q5.--Do you have your website? --Yes, Please click here. http://www.lihua-group.com (Independent website) |
Q6.--What is the necessary information for a inquiry? --Product name, specification, material grade and quantity. |
