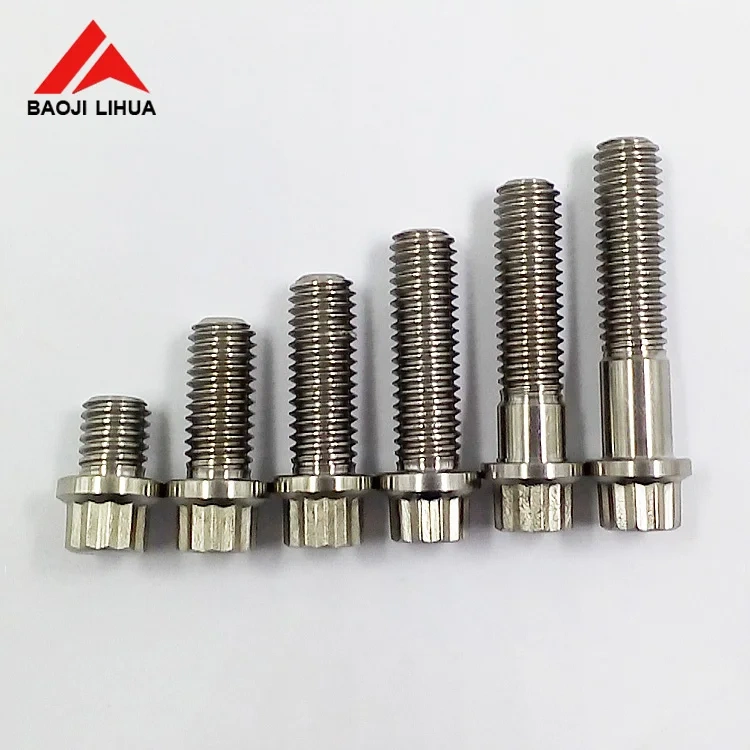

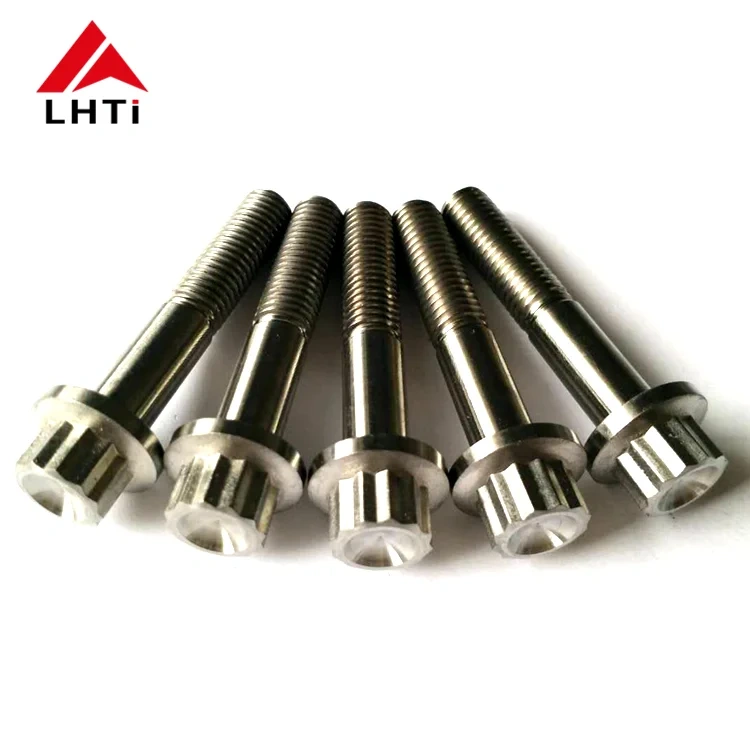

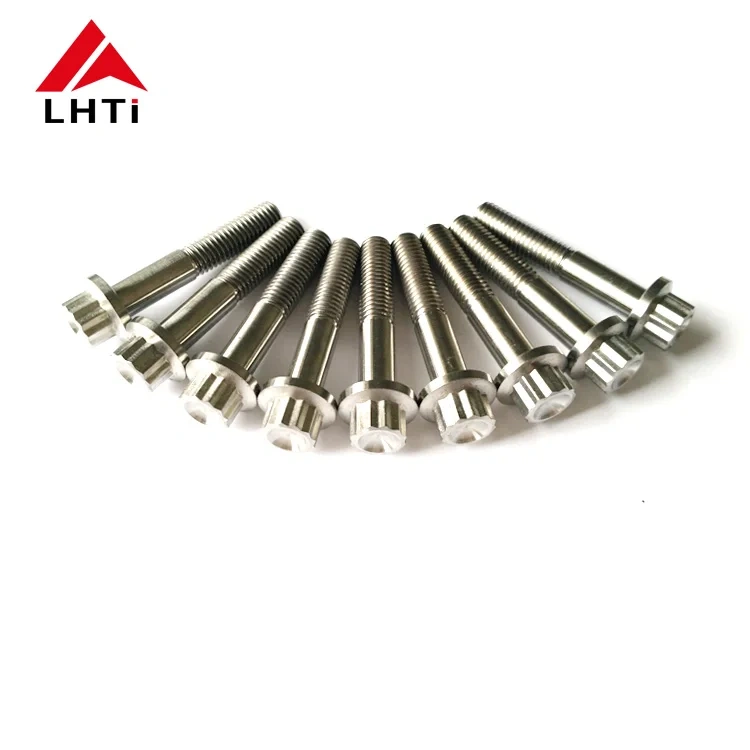

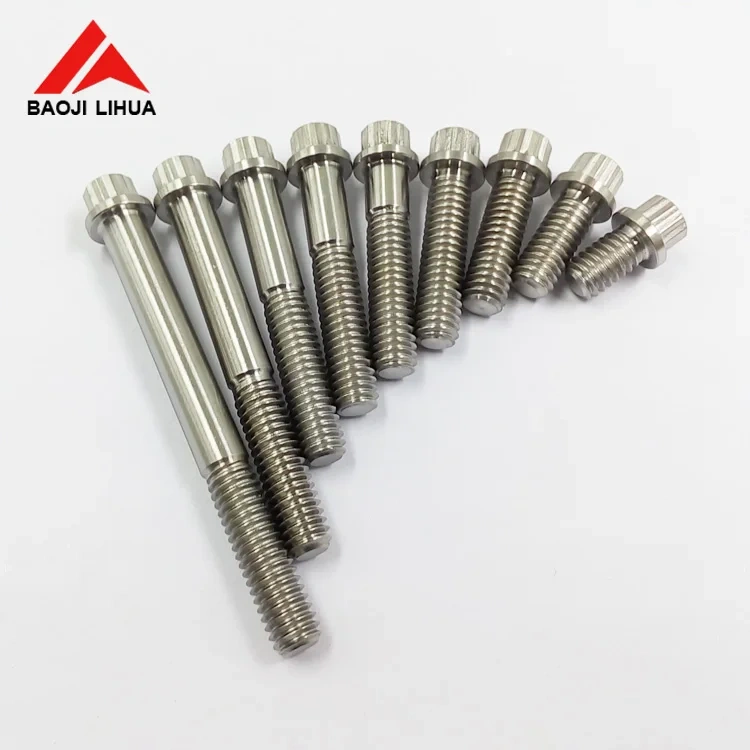

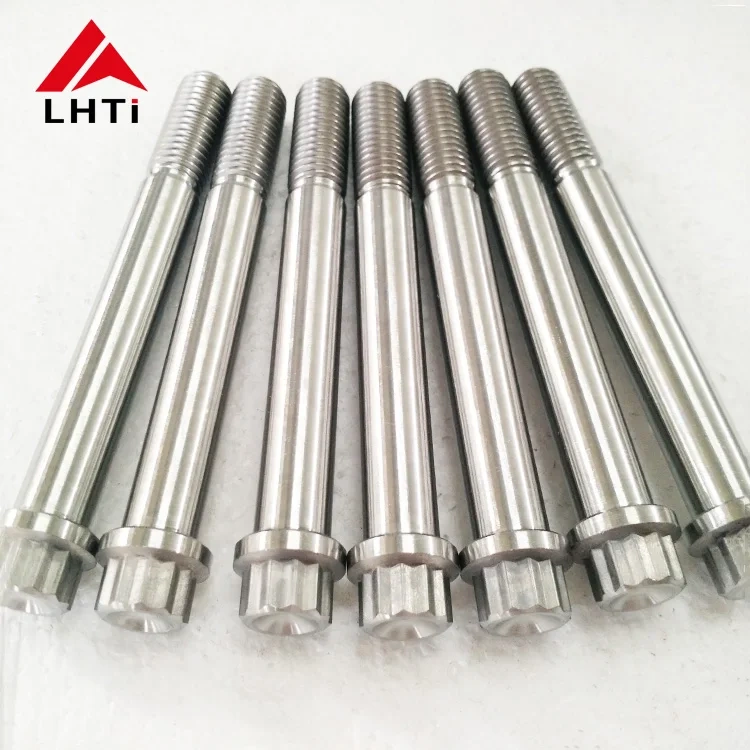

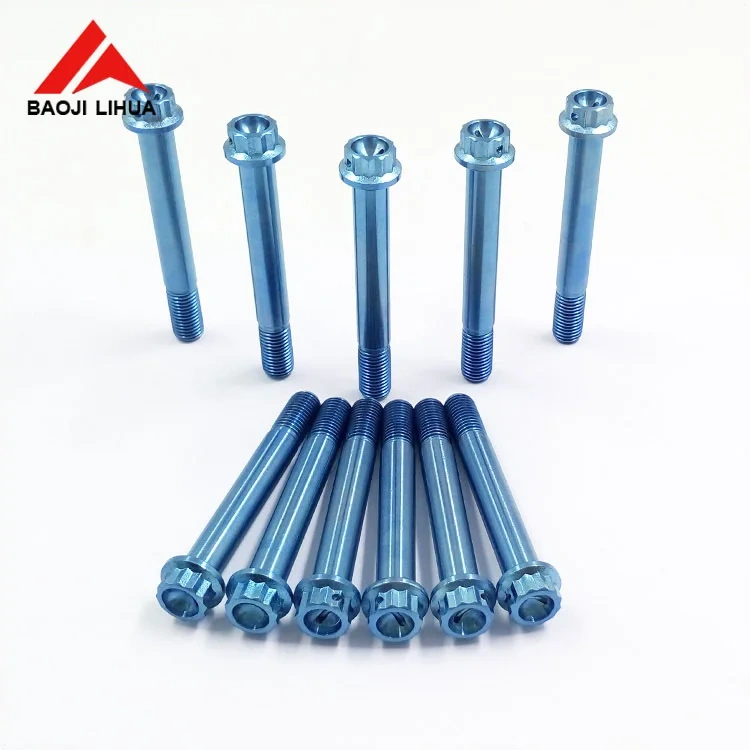

TI GR5 Titanium Bolt 12 Point Flanged Head Split Rim Bolt & nut For 3 Piece Wheels
1.Description:
Titanium is one of the strongest and lightest materials in existence. It found its way into applications ranging from military usage, aircraft and all the way to space.
Titanium is a lustrous transition metal with a silver color, low density, and high strength, making it perfect for applications that require only the best materials known to
man. Titanium is also resistant to corrosion in sea water, aqua regia, and chlorine, making it a perfect bolt/assembly material for use on vehicles. Additionally, the weight
savings of both the titanium lug bolts and hardware assembly, make it a perfect choice for any vehicle owner that wants to lower the unsprung mass on their car significantly,
yielding improved performance and handling.
One of the rarest and most expensive of metals, titanium is usually reserved for use in aerospace and military applications where strength and durability are paramount, and
lightweight is critical to performance. Weighing only 55% of a comparable steel or stainless steel fastener, the new design assembly fasteners provide a reduction in unsprung
wheel weight and moment of inertia, leading to improved acceleration and braking, as well as enhanced suspension performance.
| Gr5(Ti6Al4V) | ||||
| Chemical compositions(weight%,<=) | ||||
| Ti | Al | V | Fe | C |
| Reminder | 5.5-6.75 | 3.5-4.5 | 0.30 | 0.08 |
| N | H | O | Other(total) | |
| 0.05 | 0.015 | 0.2 | 0.4 | |
Physical properties(>=) | ||||
Σb Tensile Strength (Mpa) | Ïr0.2 Yield Strength (Mpa) | δL0+50mm Elongation (%) | Ï Reduction of area (%) | |
| 895 | 825 | 10 | 25 | |
Mechanical info about our Ti alloy bolts | |
| Thread | Rolled thread for better fatigue resistance and avoid galling, Instead of cut thread |
| Tensile strength | Heat treated to 950Mpa~1000Mpa |
| Yield strength | 870Mpa~925Mpa (126,000psi~134,000psi) |
| Hardness | 30 HRC-40HRC |
| Shear strength | 500Mpa~550Mpa |
| Elongation | 14%~18% |
| Working temp | Up to 500°c |
FAQ |
Q1.--How can you ensure the product quality? --All products are manufactured according to ASTM standard (Bolts are according to ASME standard and DIN standard),and we make 100% inspection before shipment,also we can provide the MTC Material Test Certification. |
Q2.--Can you print our LOGO on the products? --Sure, and we welcome the customerized products. |
Q3.--Can we get the free sample? --Sure. |
Q4.--What about the payment terms? --T/T, L/C,Paypal,Western Union,Escrew and MoneyGram etc are all accepted. |
Q5.--Do you have your website? --Yes, Please click here. http://www.lihua-group.com (Independent website) |
Q6.--What is the necessary information for a inquiry? --Product name, specification, material grade and quantity. |
