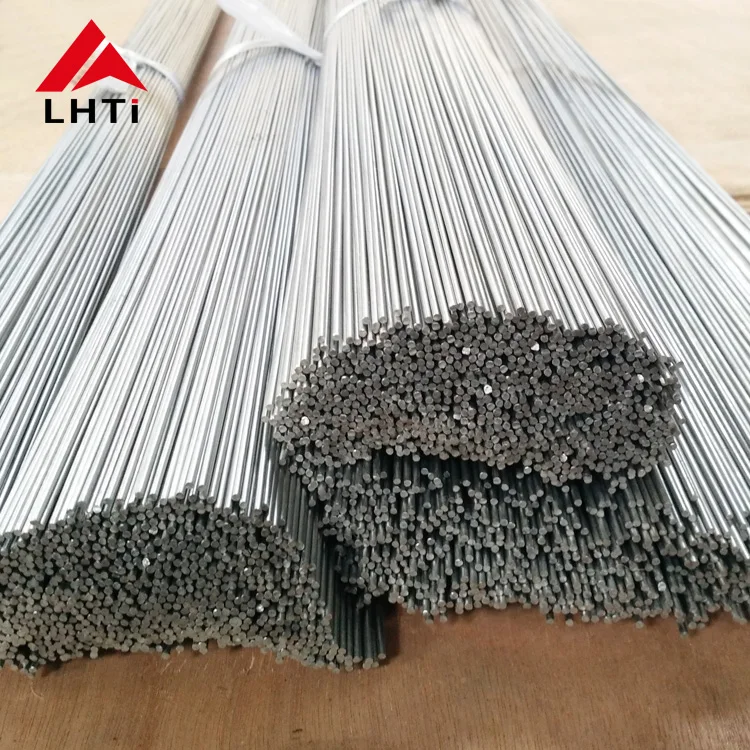

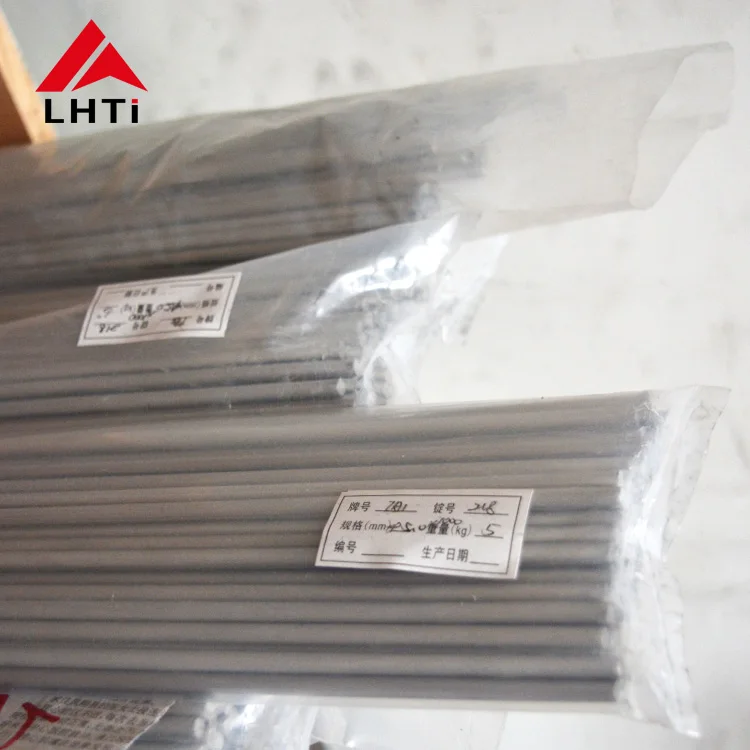

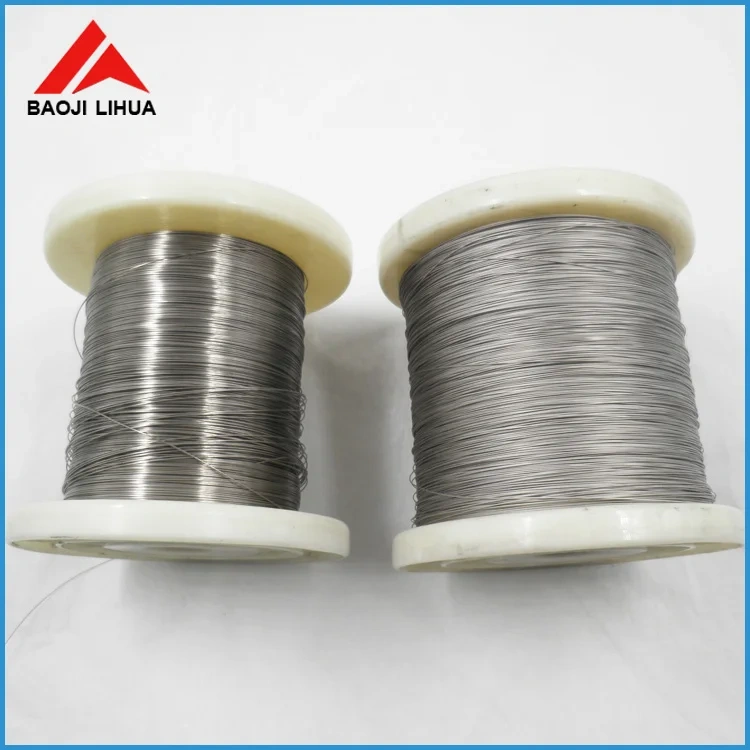

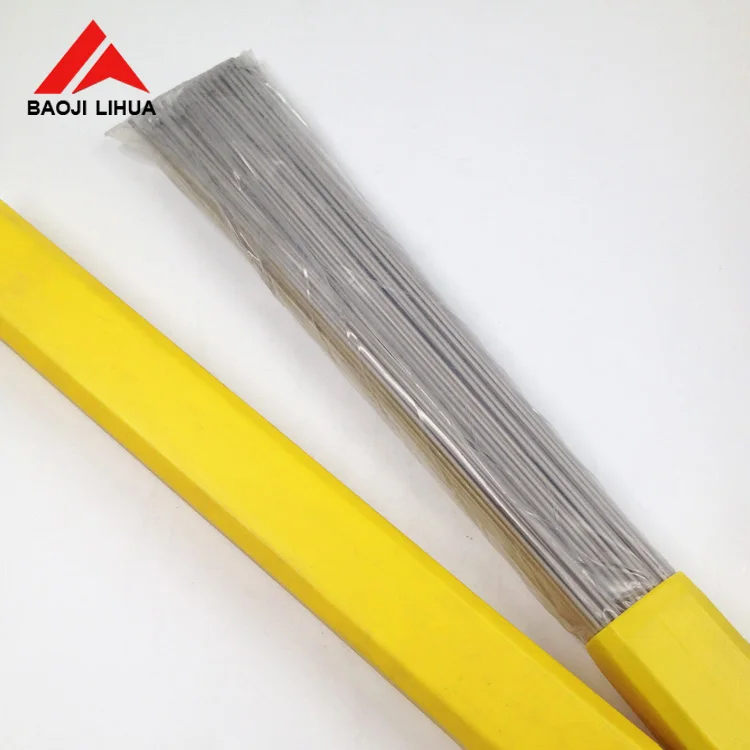

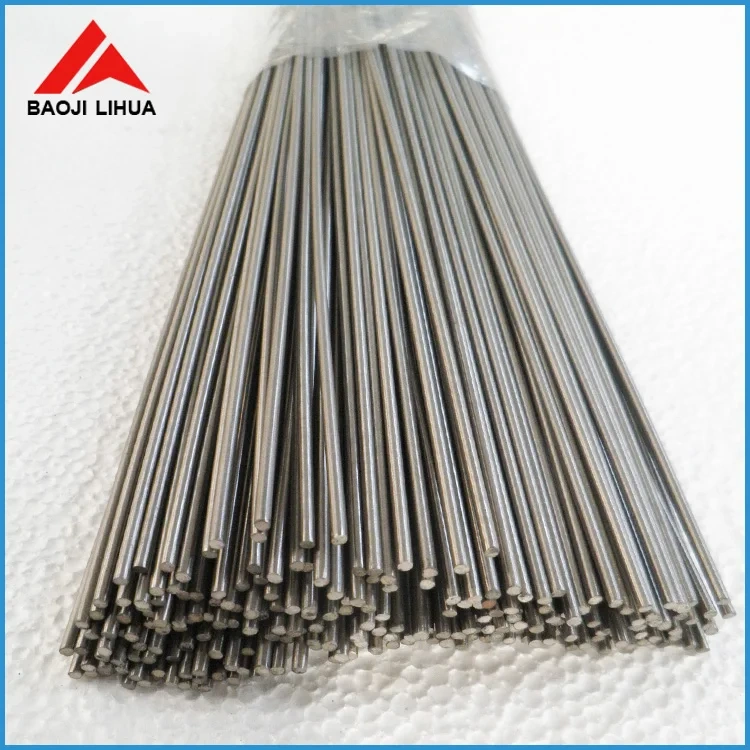

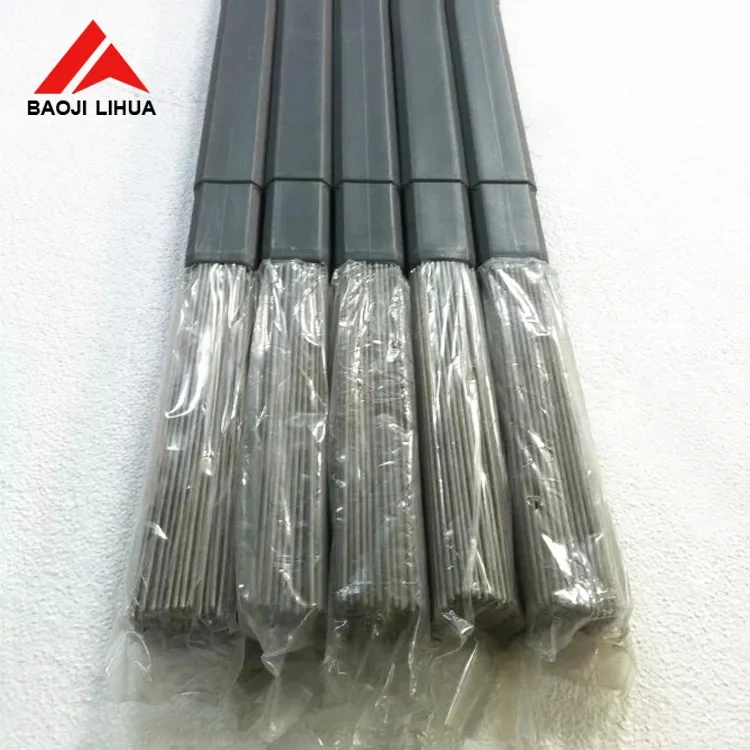

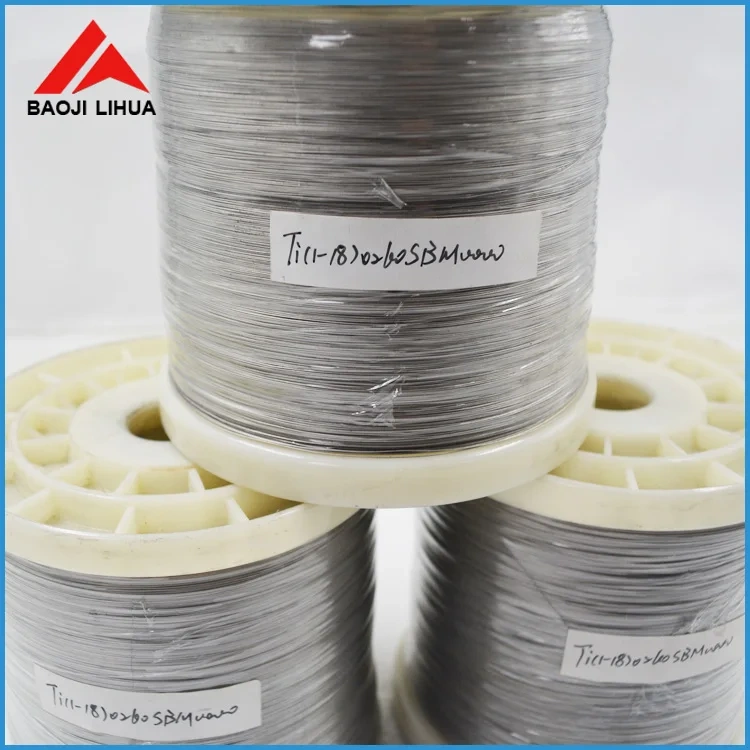

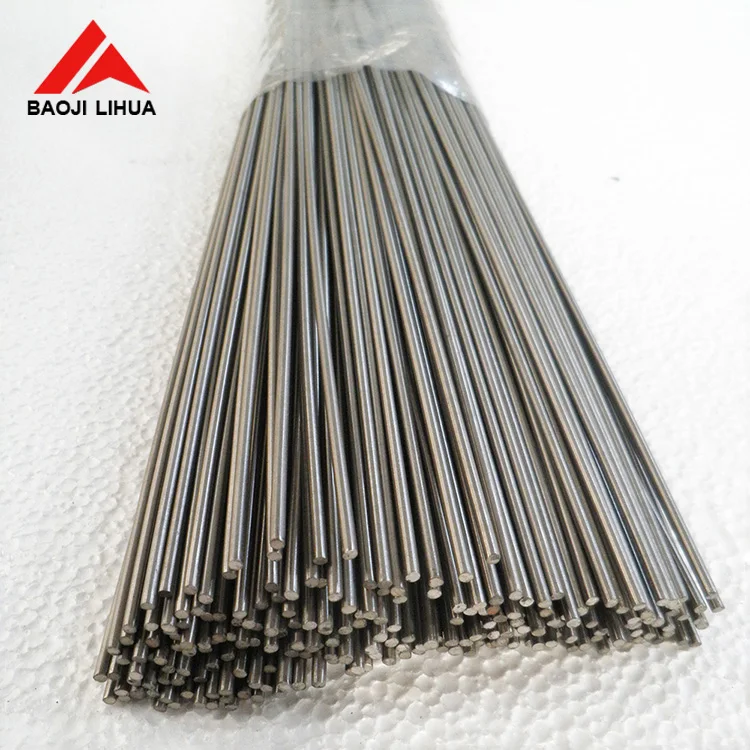

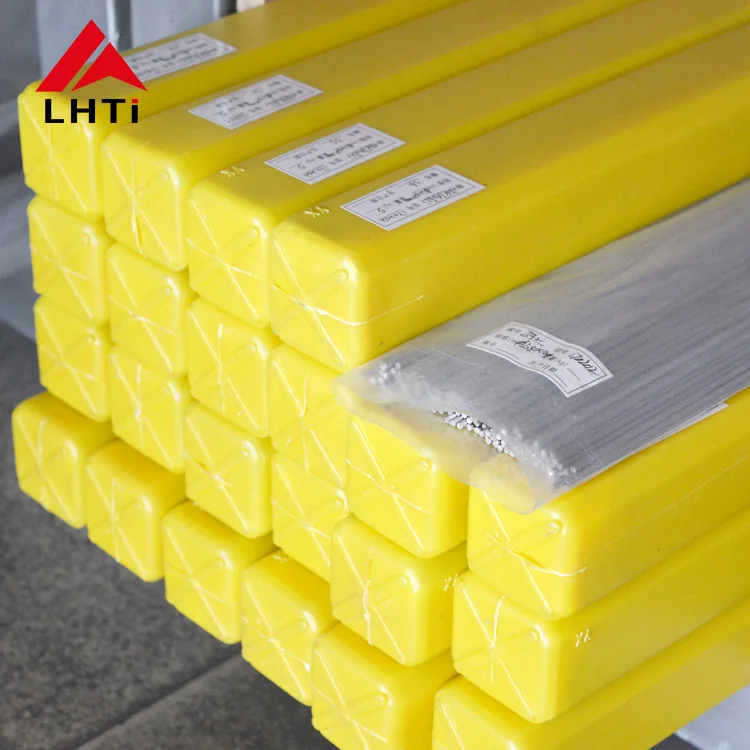

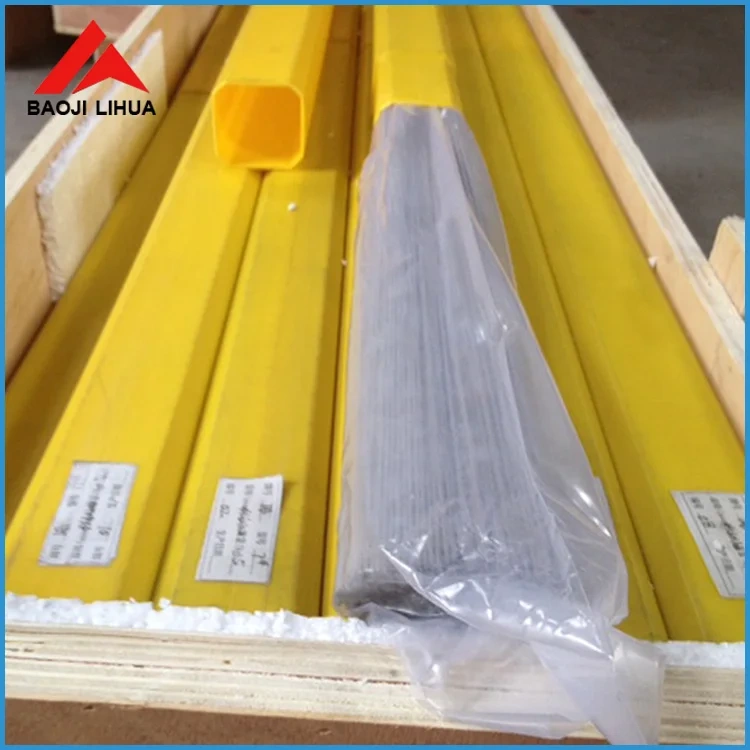

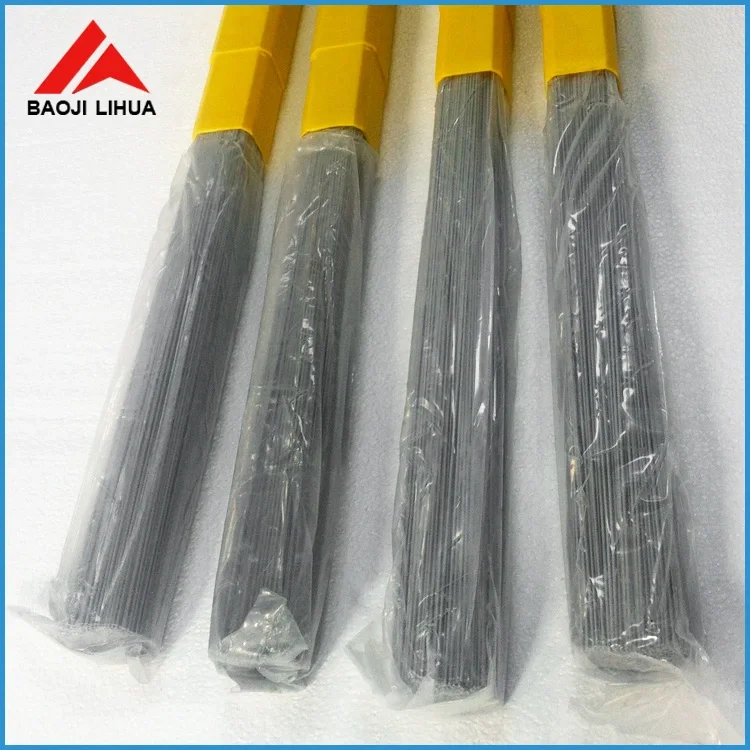

AWS A5.16 AMSE SFA 5.16 ERTi-1 ERTi-2 titanium welding wire for MIG & TIG
Product features |
Titanium Wire is slivery metal with excellent properties. Density is 4.54g/cm³ lighter than Steel. But mechanical strength is higher than Steel, 2 times stronger than Aluminium, 5 times stronger than Magnesium. Pure Titanium Wire is high temperature resistance and melting point is 1942K. High Qualiy Titanium Wire has low density, light weight, high strength, also has the good corrosion resistance, high temperature resistant, low temperature resistance, acid resistance, alkali resistance and so on. Titanium wire can be applyed in different walks of life. Such as military industry, medical, sporting goods industry, glasses, earring, headwear, plating hangers, welding wire etc. |
| Specifications | |||
| Grade | AWS A5.16 | ASTM B863 | AMS |
Commercial Pure Titanium | ERTi-1,2,3,4 | ASTM B863 Gr1,2,3,4 | AMS 4951 |
Ti 6Al-4V | ERTi-5 | ASTM B863 Gr5 | AMS 4954 |
Ti 6Al-4V Eli | ERTi-5 Eli | ASTM B863 Gr23 | AMS 4956 |
Ti (0.12~0.25)Pd | ERTi-7 | ASTM B863 Gr7 | ---- |
Ti 3Al-2.5V | ERTi-9 | ASTM B863 Gr9 | ---- |
Ti 0.3Mo-0.8Ni | ERTi-12 | ASTM B863 Gr12 | ---- |
| Diameters and types | ||||
| Diameter | Types | |||
| mm | inch | Coil | Spool | Straight |
| 0.05 to 0.78 | 0.002 to 0.031 | Yes | Yes | No |
| >0.78 to 3.25 | >0.031 to 0.128 | Yes | Yes | Yes |
| > 3.25 to 6.00 | > 0.128 to 0.236 | Yes | No | Yes |
* Diameter Tolerance: +/-0.05mm (+/-0.002â) or finer | ||||
Titanium wire applied in welding:
Tensile Requirements | |||||
| Grade | Tensile Strength(min) | Yeild Strength(min) | Elongation(%) | ||
| ksi | MPa | ksi | MPa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 3 | 65 | 450 | 55 | 380 | 18 |
| 4 | 80 | 550 | 70 | 483 | 15 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 9 | 90 | 620 | 70 | 438 | 15 |
| 12 | 70 | 438 | 50 | 345 | 18 |
FAQ |
Q1.--How can you ensure the product quality? --All products are manufactured according to ASTM standard (Bolts are according to ASME standard and DIN standard),and we make 100% inspection before shipment,also we can provide the MTC Material Test Certification. |
Q2.--Can you print our LOGO on the products? --Sure, and we welcome the customerized products. |
Q3.--Can we get the free sample? --Sure. |
Q4.--What about the payment terms? --T/T, L/C,Paypal,Western Union,Escrew and MoneyGram etc are all accepted. |
Q5.--Do you have your website? --Yes, Please click here. http://www.lihua-group.com (Independent website) |
Q6.--What is the necessary information for a inquiry? --Product name, specification, material grade and quantity. |
